- Part Number TPS65163RGZT
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TPS65163RGZT Details
-
Manufacturer Part Number:
TPS65163RGZT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
7 X 7 MM, GREEN, PLASTIC, VQFN-48
-
Pin Count:
48
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
TPS65163RGZT Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a compact layout with short traces, and placing the input and output capacitors close to the device. Additionally, separating the analog and digital grounds and using a solid ground plane can help reduce noise and improve performance.
-
The TPS65163RGZT has a flexible output voltage configuration. To select the correct output voltage, consider the input voltage range, output current requirements, and desired output voltage. Use the datasheet's configuration tables and equations to determine the correct resistor values and configuration for your specific application.
-
The TPS65163RGZT can handle input voltages up to 18V. However, the maximum input voltage affects the output voltage regulation. As the input voltage increases, the output voltage regulation may degrade. Ensure the input voltage is within the recommended range (5.5V to 15V) for optimal performance.
-
The TPS65163RGZT has built-in input voltage transient protection and brownout detection. It can handle input voltage transients up to 20V for 100ms and has a brownout detection threshold of 4.2V. The device will enter a shutdown state during brownout conditions and restart when the input voltage recovers.
-
The TPS65163RGZT has a thermal shutdown feature that protects the device from overheating. The junction temperature (TJ) should be kept below 150°C for reliable operation. Ensure proper thermal design, including heat sinking and airflow, to maintain a safe operating temperature.
Trust Checks
System Verified
TPS65163RGZT Overview

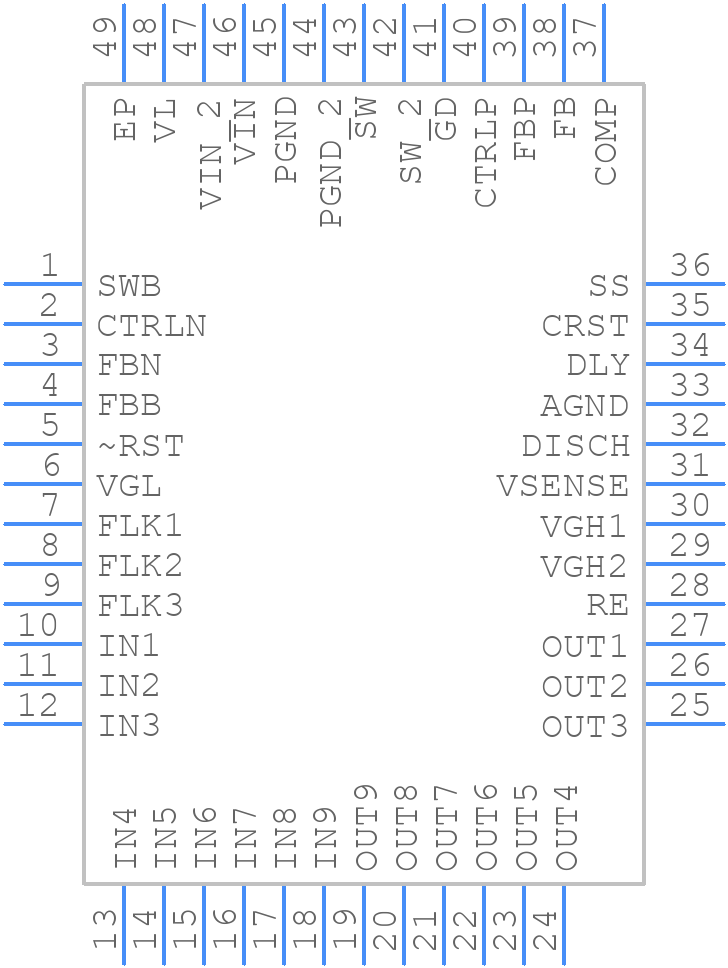

Use the download button to access the TPS65163RGZT schematic symbol, PCB footprint, and 3D model.
