TPS65178RSLT - Texas Instruments

Description: Fully Programmable LCD Bias IC for TV with 6-Channel Gamma Buffer, Vcom Reference and Dynamic Gain

Download TPS65178RSLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

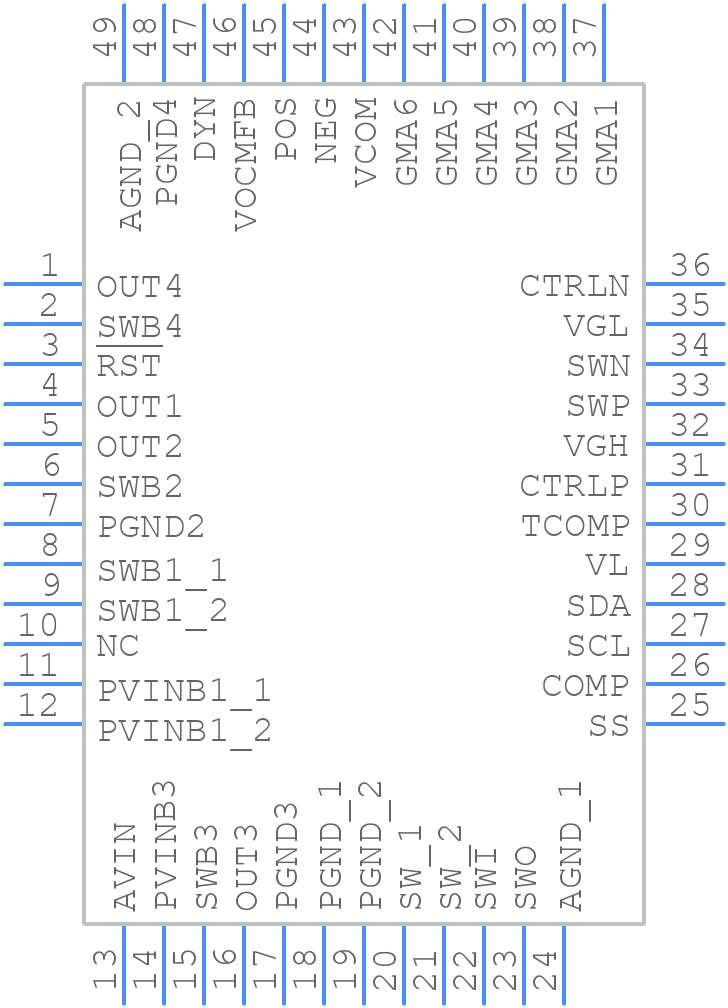

TPS65178RSLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65178RSLT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom
3D Models
TPS65178RSLT - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom

TPS65178RSLT Details

  • Manufacturer Part Number:

    TPS65178RSLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-07-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    14.7 V

  • Input Voltage-Min:

    8.6 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Negative Input Voltage-Max:

    -1.8 V

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    34 V

  • Output Voltage-Min:

    19 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    14.7 V

  • Supply Voltage-Min (Vsup):

    8.6 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65178RSLT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65178RSLT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating higher than the maximum input voltage, and output capacitors with a voltage rating higher than the output voltage. The capacitance value depends on the output current and ripple requirements. A general rule of thumb is to use 10uF to 22uF ceramic capacitors for both input and output.
  • The TPS65178RSLT can operate in an ambient temperature range of -40°C to 85°C. However, the junction temperature should not exceed 125°C.
  • Yes, the TPS65178RSLT is a high-reliability device, suitable for automotive and industrial applications. It has a high MTBF (Mean Time Between Failures) and is qualified to the AEC-Q100 standard.
  • Start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, and ensure that the device is properly soldered and mounted.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65178RSLT Overview

Use the download button to access the TPS65178RSLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
