TPS65185RGZR - Texas Instruments

Description: PMIC for E-Ink® Vizplex™ Enabled Electronic Paper Display w/ Active Discharge

Download TPS65185RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

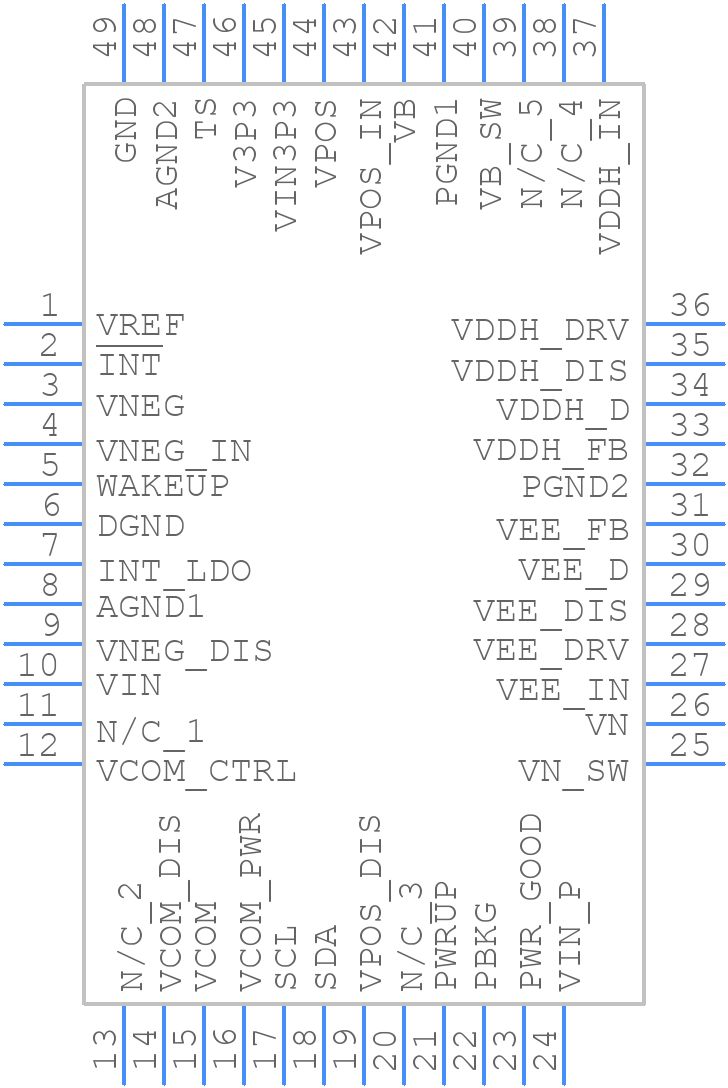

TPS65185RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65185RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS65185RGZR
click to zoom
3D Models
TPS65185RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - TPS65185RGZR
click to zoom

TPS65185RGZR Details

  • Manufacturer Part Number:

    TPS65185RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.9 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.9 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65185RGZR Frequently Asked Questions (FAQs)

  • It's essential to follow the recommended layout and placement guidelines in the datasheet to ensure proper thermal performance and minimize electromagnetic interference (EMI). Keep the device away from heat sources, and use a solid ground plane to reduce noise and improve stability.
  • To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set correctly using the FB pin. Additionally, use a low-ESR output capacitor and minimize the distance between the output capacitor and the device to reduce noise and improve stability.
  • The TPS65185RGZR can handle input voltages up to 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • Implement overcurrent protection using an external current sense resistor and a comparator or a dedicated overcurrent protection IC. Also, ensure proper thermal design and heat sinking to prevent overheating. Monitor the device's temperature and adjust the design accordingly.
  • The TPS65185RGZR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal design when operating in high-temperature environments. Ensure proper heat sinking and thermal management to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65185RGZR Overview

Use the download button to access the TPS65185RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
