TPS65185RGZT - Texas Instruments

Description: Power Management Specialised - PMIC PMIC for E-Ink Vizplex

Download TPS65185RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

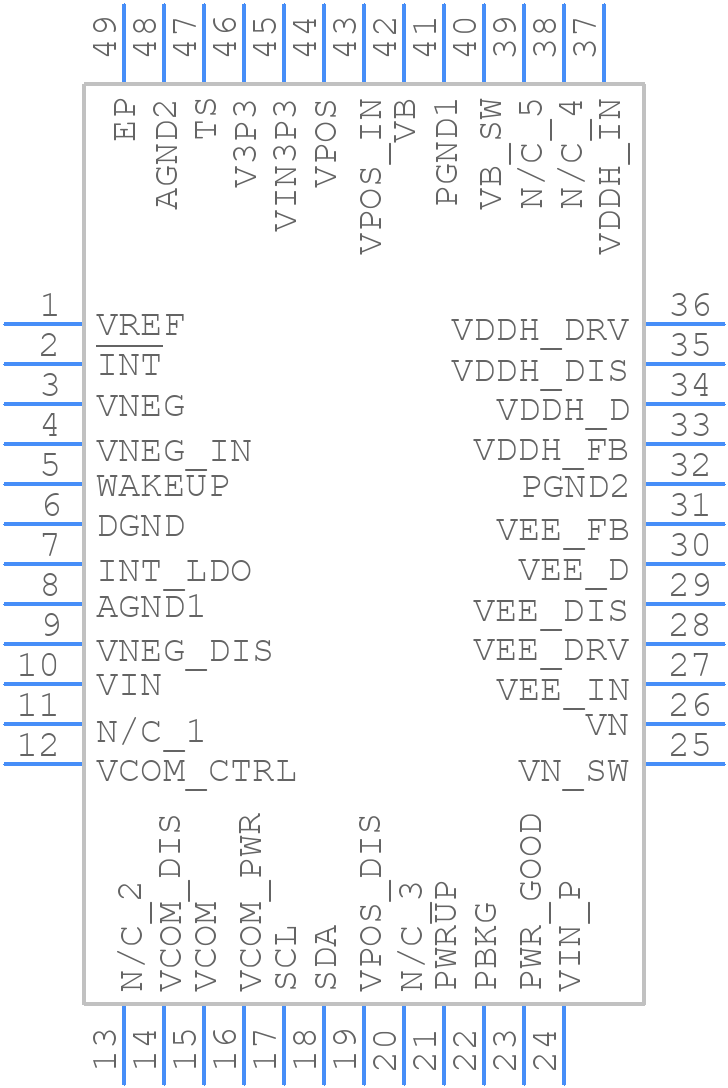

TPS65185RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65185RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
TPS65185RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

TPS65185RGZT Details

  • Manufacturer Part Number:

    TPS65185RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.9 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.9 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65185RGZT Frequently Asked Questions (FAQs)

  • TI recommends a compact layout with short traces, and placing the input capacitors close to the VIN pin. The output capacitors should be placed close to the VOUT pin. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note 'TPS65185RGZT Layout Guidelines' for more details.
  • Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, select ones with a low ESR and a high capacitance value. The recommended capacitance values are 10uF to 22uF for the input and 22uF to 47uF for the output. Refer to the TI application note 'TPS65185RGZT Capacitor Selection Guide' for more information.
  • The TPS65185RGZT is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design. Refer to the datasheet and the TI application note 'TPS65185RGZT Thermal Design Guidelines' for more information.
  • The TPS65185RGZT has built-in OVP and UVP features. For OVP, the device will shut down if the input voltage exceeds 6.5V. For UVP, the device will shut down if the input voltage falls below 2.5V. You can also implement external OVP and UVP circuits using resistors and zener diodes. Refer to the datasheet and the TI application note 'TPS65185RGZT Protection Features' for more information.
  • The recommended input voltage range for the TPS65185RGZT is 2.7V to 5.5V. However, the device can operate from 2.5V to 6.5V, but with reduced performance and efficiency. Refer to the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65185RGZT Overview

Use the download button to access the TPS65185RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
