TPS65185RSLR - Texas Instruments

Description: PMIC for E-Ink® Vizplex™ Enabled Electronic Paper Display w/ Active Discharge

Download TPS65185RSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

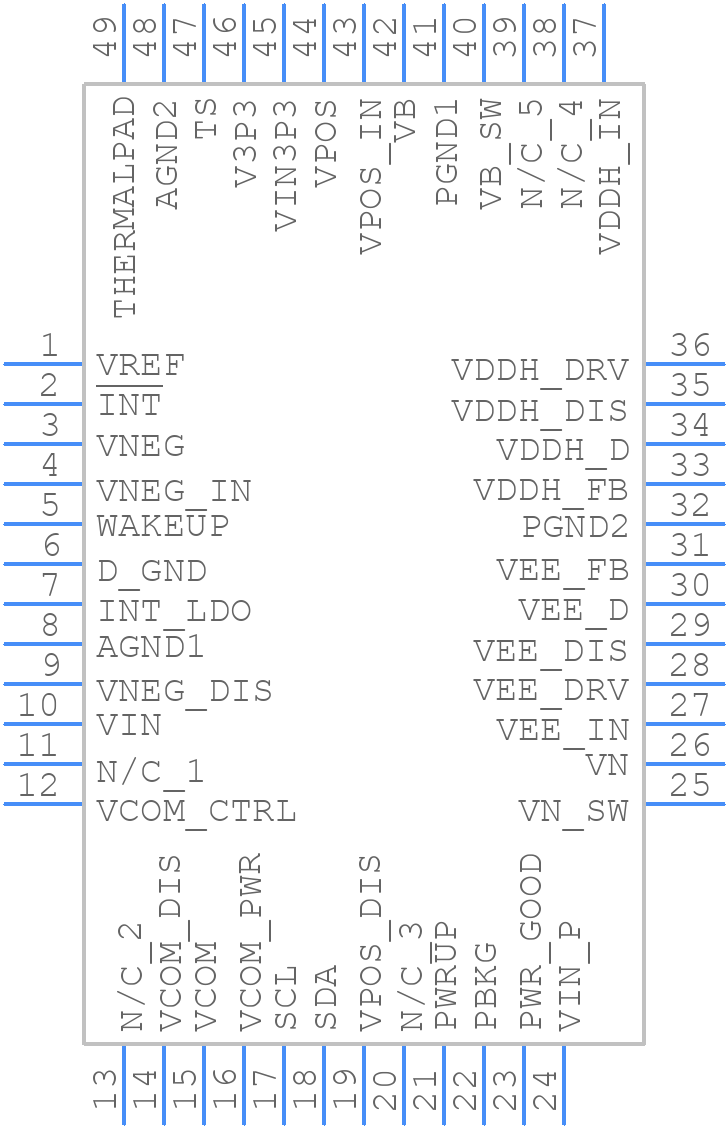

TPS65185RSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65185RSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom
3D Models
TPS65185RSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom

TPS65185RSLR Details

  • Manufacturer Part Number:

    TPS65185RSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.9 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.9 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65185RSLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65185RSLR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and an ESR of less than 1 ohm. For output capacitors, choose ones with a voltage rating of at least 1.5 times the output voltage, and an ESR of less than 0.1 ohm. X5R or X7R ceramic capacitors are recommended.
  • The TPS65185RSLR can operate in an ambient temperature range of -40°C to 85°C. However, the device's junction temperature should not exceed 125°C.
  • The TPS65185RSLR has a built-in overcurrent protection feature. To implement it, connect a resistor (RILIM) between the ILIM pin and GND. The value of RILIM determines the overcurrent threshold. A lower RILIM value sets a higher overcurrent threshold.
  • Yes, the TPS65185RSLR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
