Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS65185RSLT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
Troubleshooting issues with the TPS65185RSLT requires a systematic approach, including checking the input voltage, output voltage, and output current, as well as the device's thermal performance. It's also recommended to consult the datasheet, application notes, and Texas Instruments' support resources, such as the E2E forum and technical documentation.
The TPS65185RSLT is a high-reliability device, but it's essential to consult the datasheet and Texas Instruments' documentation to ensure it meets the specific requirements of the application. Additionally, it's recommended to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65185RSLT Overview

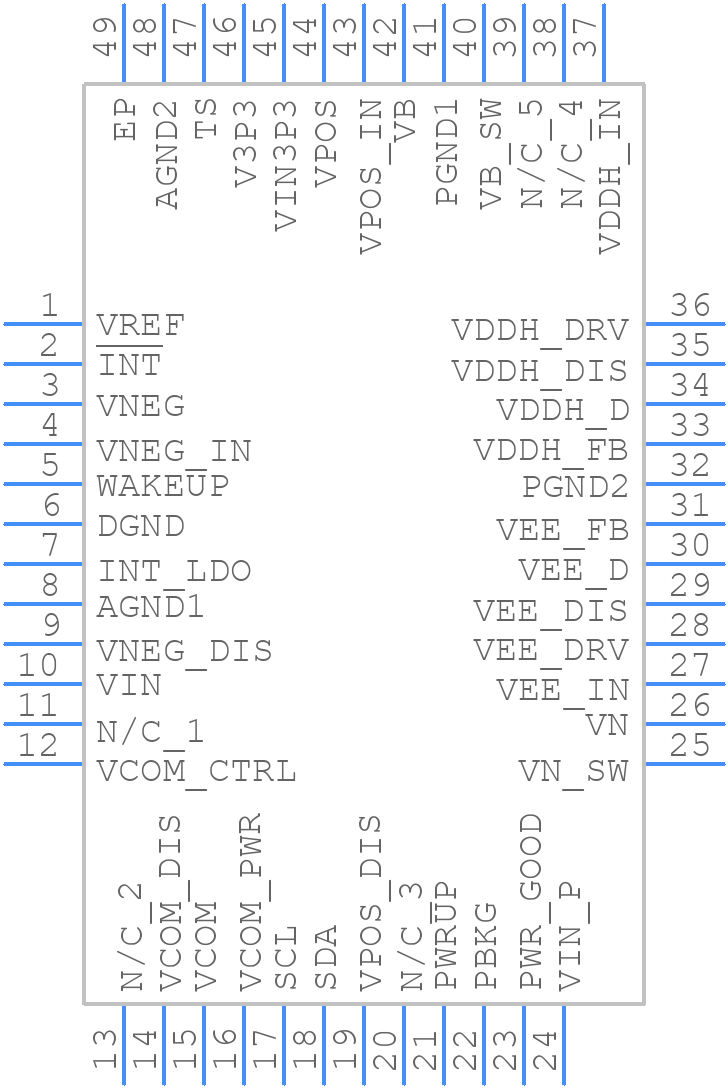

Use the download button to access the TPS65185RSLT schematic symbol, PCB footprint, and 3D model.
