Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and current requirements. Texas Instruments provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
The maximum ambient temperature range for the TPS652170RSLR is -40°C to 105°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
Proper thermal management is critical for the TPS652170RSLR. Ensure good airflow around the device, use a heat sink if necessary, and follow Texas Instruments' thermal design guidelines to keep the device's junction temperature within the recommended range.
The recommended input voltage range for the TPS652170RSLR is 2.7V to 5.5V, but it's recommended to consult the datasheet for specific input voltage requirements based on the output voltage and current requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS652170RSLR Overview

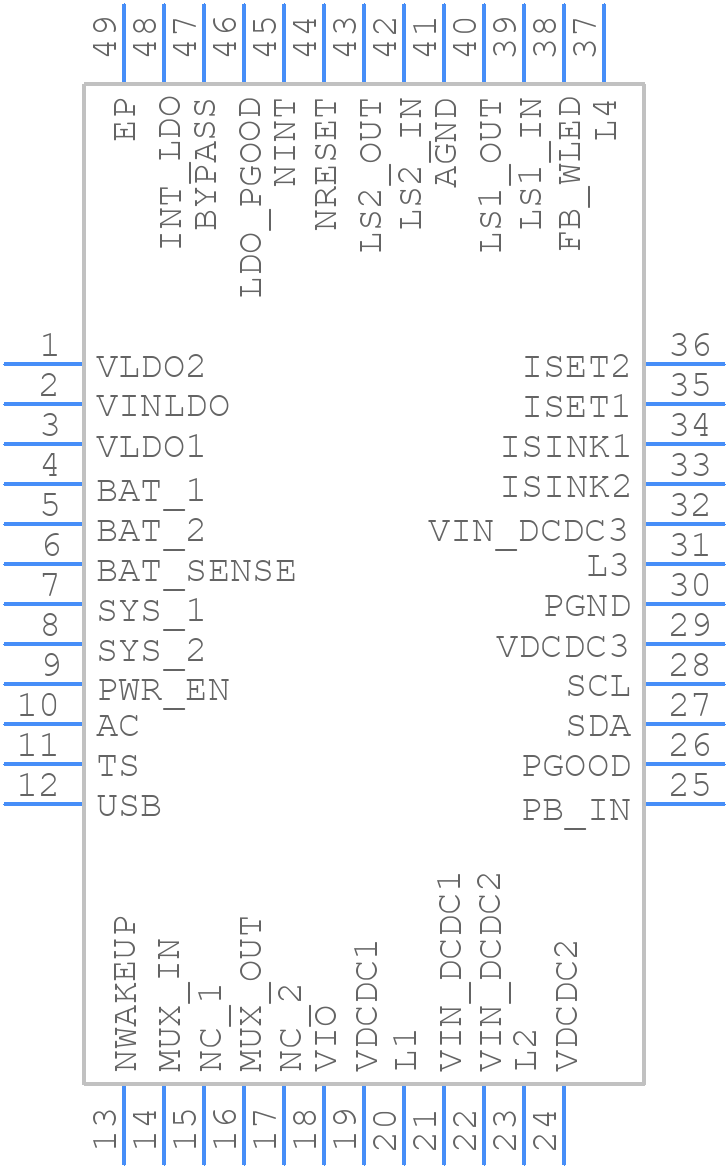

Use the download button to access the TPS652170RSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
