TPS65217CRSLR - Texas Instruments

Description: Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, Linear Battery Charger & White LED Driver

Download TPS65217CRSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

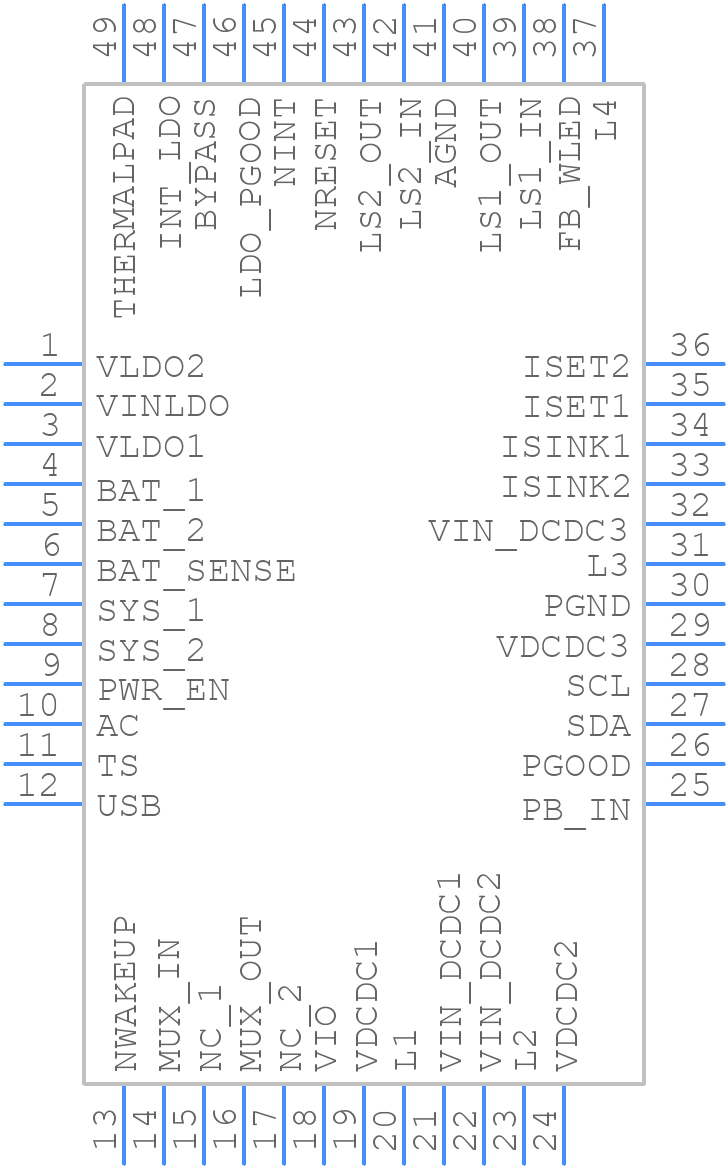

TPS65217CRSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65217CRSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN-48
click to zoom
3D Models
TPS65217CRSLR - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN-48
click to zoom

TPS65217CRSLR Details

  • Manufacturer Part Number:

    TPS65217CRSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.8 V

  • Input Voltage-Min:

    2.75 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    9

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2000 mA

  • Supply Voltage-Max (Vsup):

    5.8 V

  • Supply Voltage-Min (Vsup):

    2.75 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2550 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65217CRSLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65217CRSLR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS65217CRSLR depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The TPS65217CRSLR is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating, but this may affect its reliability and lifespan.
  • The TPS65217CRSLR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, and vice versa.
  • Yes, the TPS65217CRSLR is a high-reliability device that is suitable for use in high-reliability applications such as automotive, industrial, and medical devices. It is manufactured using a high-reliability process and is qualified to various industry standards such as AEC-Q100.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65217CRSLR Overview

Use the download button to access the TPS65217CRSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
