TPS65218B101PHPR - Texas Instruments

Description: Power Management Specialised - PMIC R 595-TPS65218D0PHPR

Download TPS65218B101PHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

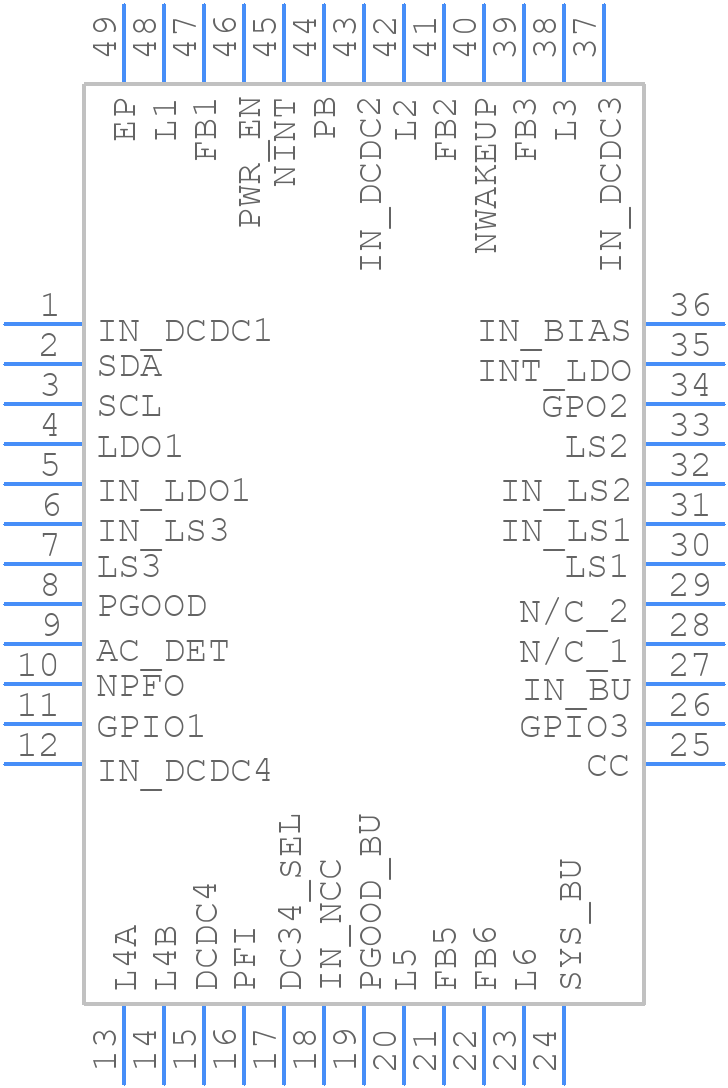

TPS65218B101PHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65218B101PHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)_3
click to zoom
3D Models
TPS65218B101PHPR - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)_3
click to zoom

TPS65218B101PHPR Details

  • Manufacturer Part Number:

    TPS65218B101PHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    3.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65218B101PHPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65218B101PHPR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose output capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. The recommended output capacitance is 10uF to 22uF, with a voltage rating of at least 2x the output voltage. X5R or X7R ceramic capacitors are good options.
  • The TPS65218B101PHPR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power losses.
  • The output voltage of the TPS65218B101PHPR can be adjusted by changing the resistor divider ratio between the FB pin and the output voltage. Use the formula in the datasheet to calculate the required resistor values for the desired output voltage.
  • The thermal derating curve for the TPS65218B101PHPR is provided in the datasheet. It shows the maximum output current vs. ambient temperature. For example, at 50°C, the maximum output current is reduced to 70% of the maximum rating.
