TPS65218B101PHPT - Texas Instruments

Description: Power Management IC (PMIC) for ARM Cortex-A8/A9 SoCs and FPGA

Download TPS65218B101PHPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

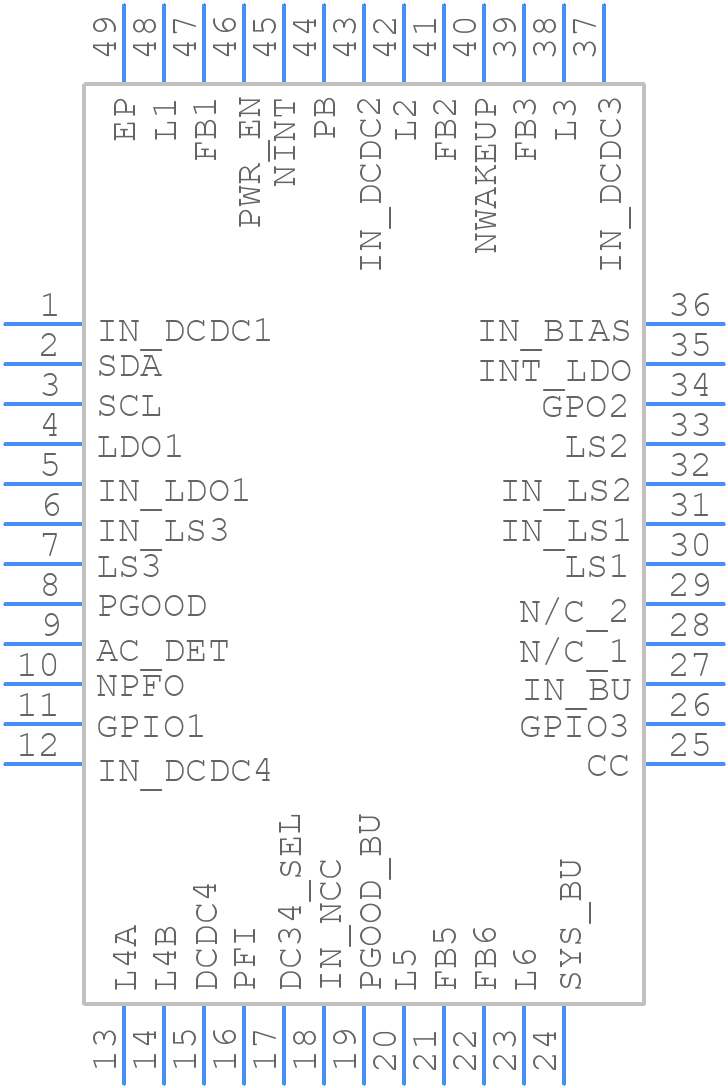

TPS65218B101PHPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65218B101PHPT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - php
click to zoom
3D Models
TPS65218B101PHPT - Texas Instruments - 3D model - Quad Flat Packages - php
click to zoom

TPS65218B101PHPT Details

  • Manufacturer Part Number:

    TPS65218B101PHPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    3.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65218B101PHPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65218B101PHPT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The output capacitor should be chosen based on the output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. TI provides a capacitor selection guide in the datasheet.
  • The TPS65218B101PHPT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS65218B101PHPT can be adjusted by changing the resistor divider ratio between the FB pin and the output voltage. TI provides a formula in the datasheet to calculate the required resistor values for a specific output voltage.
  • The thermal shutdown temperature of the TPS65218B101PHPT is typically around 150°C. When the junction temperature exceeds this value, the device will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65218B101PHPT Overview

Use the download button to access the TPS65218B101PHPT schematic symbol, PCB footprint, and 3D model.
