FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
3.3 V
Supply Voltage-Min (Vsup):
2.2 V
Supply Voltage-Nom (Vsup):
2.4 V
Surface Mount:
YES
Switching Frequency-Max:
2400 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TPS65218B1PHPT Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS65218B1PHPT involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the compensation network for the TPS65218B1PHPT, it is recommended to use the TI's WEBENCH Power Designer tool, which provides a graphical interface to design and optimize the compensation network. Additionally, the datasheet provides a detailed explanation of the compensation network and the equations to calculate the component values.
The TPS65218B1PHPT can handle a maximum input voltage of 18V. However, it is recommended to operate the device within the recommended input voltage range of 6.5V to 14V for optimal performance and reliability.
To ensure the stability of the TPS65218B1PHPT, it is recommended to follow the layout and placement guidelines, use the recommended compensation network, and ensure that the input and output capacitors meet the recommended specifications. Additionally, it is recommended to simulate the design using a SPICE model and to perform thorough testing and validation.
The TPS65218B1PHPT can provide a maximum output current of 2A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65218B1PHPT Overview

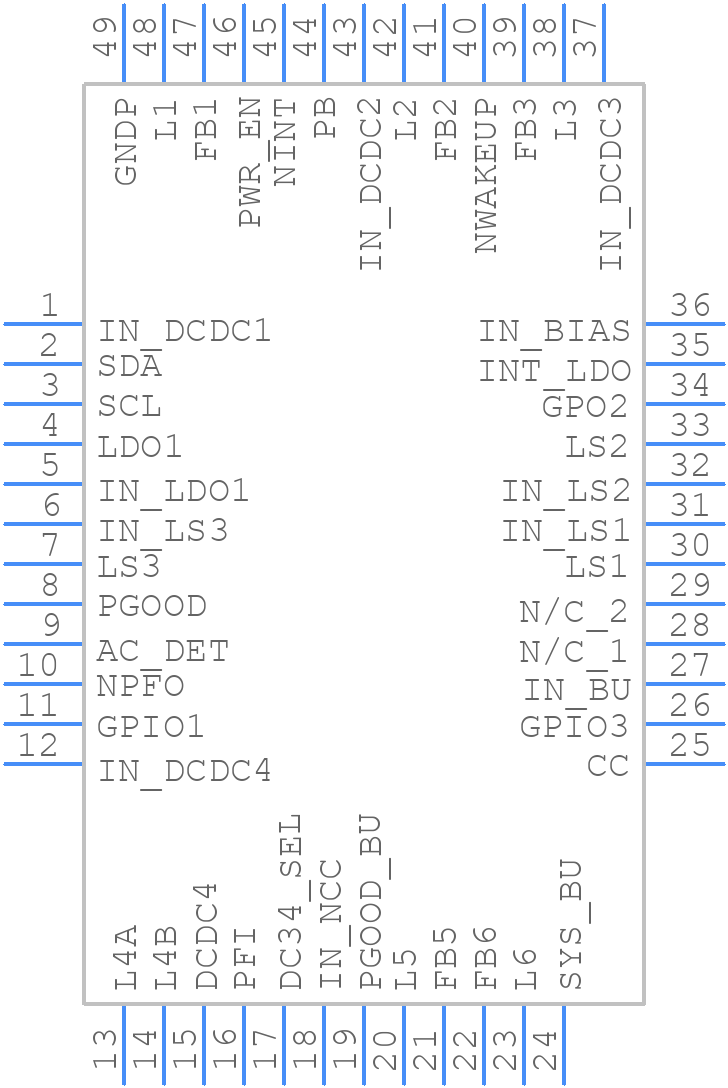

Use the download button to access the TPS65218B1PHPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
