TPS65231A2DCAR - Texas Instruments

Description: POWER MANAGEMENT IC FOR DIGITAL SET TOP BOXES

Download TPS65231A2DCAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

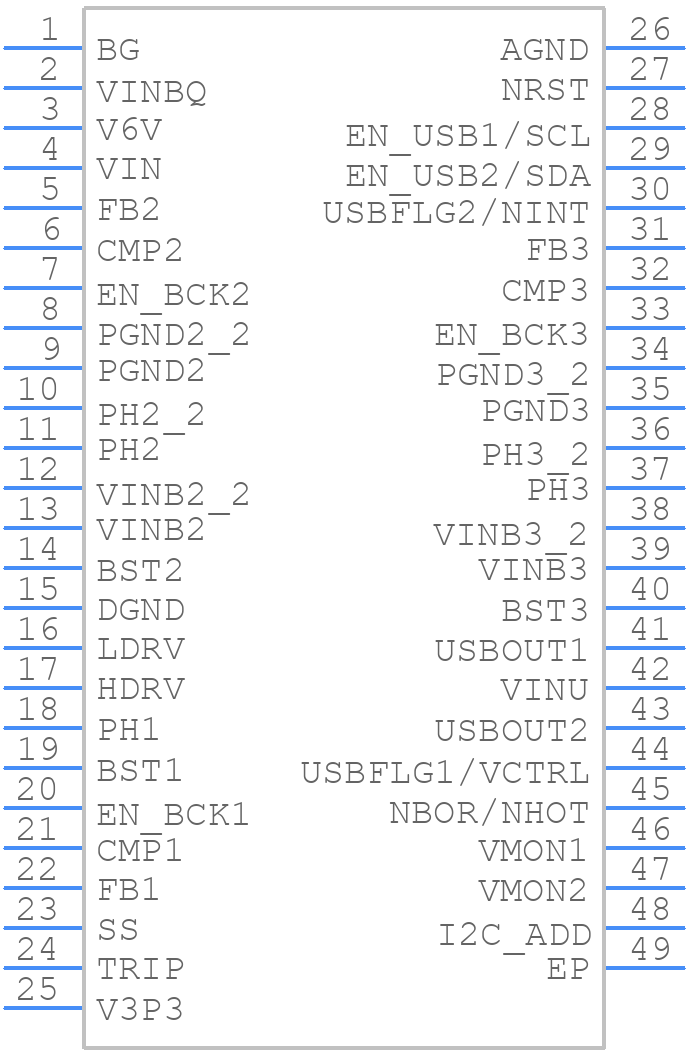

TPS65231A2DCAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65231A2DCAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)_2025
click to zoom
3D Models
TPS65231A2DCAR - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)_2025
click to zoom

TPS65231A2DCAR Details

  • Manufacturer Part Number:

    TPS65231A2DCAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    10.8 V

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPS65231A2DCAR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65231A2DCAR evaluation module (EVM) user's guide, which can be found on the TI website. The EVM user's guide includes a detailed layout guide, including component placement, routing, and thermal considerations.
  • To optimize the output voltage ripple, ensure that the output capacitors are properly selected and placed close to the output pins. Additionally, use a low-ESR capacitor and consider adding a ceramic capacitor in parallel to reduce the output voltage ripple. The TPS65231A2DCAR datasheet provides guidance on output capacitor selection and placement.
  • The TPS65231A2DCAR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 6.5V to 14V. Operating the device above the recommended input voltage range may affect its performance and reliability.
  • The TPS65231A2DCAR has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. The TPS65231A2DCAR datasheet provides guidance on implementing OVP.
  • The TPS65231A2DCAR has a thermal derating curve that can be found in the datasheet. The device's power dissipation capability decreases as the ambient temperature increases. The thermal derating curve provides guidance on the maximum power dissipation at different ambient temperatures.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPS65231A2DCAR Overview

Use the download button to access the TPS65231A2DCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
