TPS65235-1RUKT - Texas Instruments

Description: LNB voltage regulator with I2C interface in FCCM mode

Download TPS65235-1RUKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

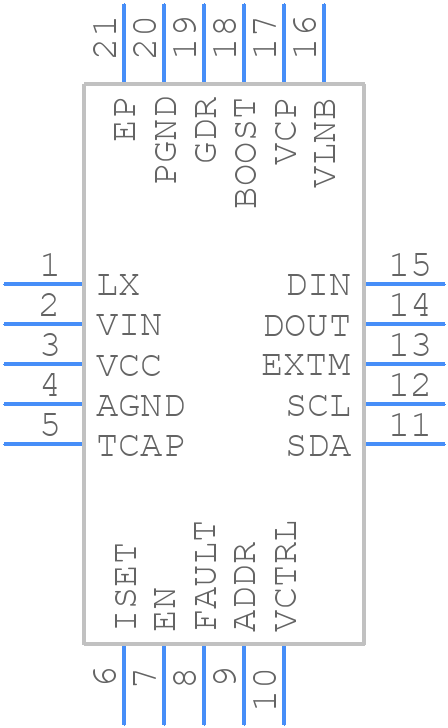

TPS65235-1RUKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65235-1RUKT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPS65235-1RUKT - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPS65235-1RUKT Details

  • Manufacturer Part Number:

    TPS65235-1RUKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    11 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65235-1RUKT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65235-1RUKT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the switching node (SW pin) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet (e.g., 2.2 μH). Then, adjust the value based on the specific application requirements and efficiency targets.
  • The TPS65235-1RUKT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
  • The TPS65235-1RUKT has a built-in OCP feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold is set by the resistor values and can be adjusted to suit the specific application requirements.
  • Yes, the TPS65235-1RUKT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
