SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1600 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPS65279DAPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS65279DAPR datasheet, but it's also recommended to follow the general guidelines for switching regulators, such as keeping the input and output capacitors close to the device, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult the inductor manufacturer's datasheet and to consider factors such as inductor core material, size, and saturation current.
The TPS65279DAPR has an absolute maximum input voltage rating of 18V, but the recommended operating input voltage range is 6.5V to 14V. Exceeding the maximum input voltage can damage the device.
The output voltage of the TPS65279DAPR can be adjusted by changing the resistive divider ratio of the feedback resistors (RFBT and RFBG). The output voltage can be calculated using the formula provided in the datasheet, and the resistors can be selected using a resistor calculator or by consulting the datasheet.
The TPS65279DAPR has a thermal derating curve provided in the datasheet, which shows the maximum output current that the device can handle at different ambient temperatures. The device must be derated to prevent overheating and damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65279DAPR Overview

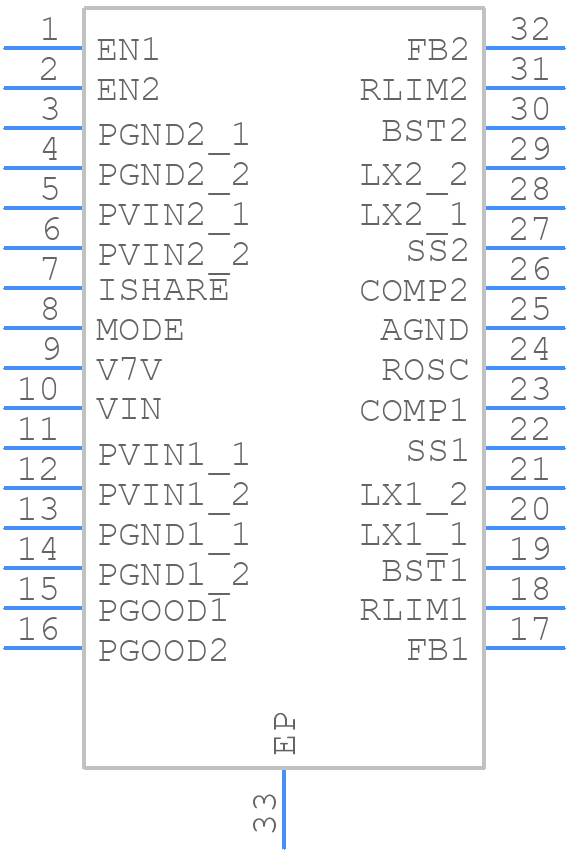

Use the download button to access the TPS65279DAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
