TPS65381AQDAPRQ1 - Texas Instruments

Description: Multi-Rail Power Supply (PMIC) for Microcontrollers in Safety Applications

Download TPS65381AQDAPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

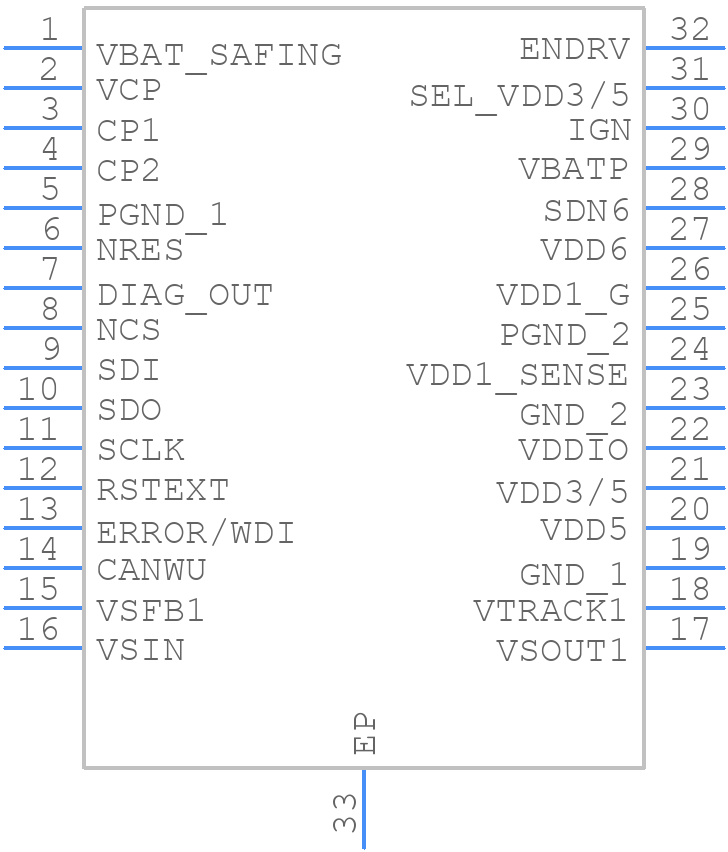

TPS65381AQDAPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65381AQDAPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DAP (R-PDSO-G32)_2
click to zoom
3D Models
TPS65381AQDAPRQ1 - Texas Instruments - 3D model - Small Outline Packages - DAP (R-PDSO-G32)_2
click to zoom

TPS65381AQDAPRQ1 Details

  • Manufacturer Part Number:

    TPS65381AQDAPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-10-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5.8 V

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    5

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    9.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max (Vsup):

    5.8 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    440 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS65381AQDAPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65381AQDAPRQ1 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPS65381AQDAPRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. Consult the datasheet for more information on temperature derating.
  • To troubleshoot issues with the TPS65381AQDAPRQ1, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly selected. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the TPS65381AQDAPRQ1 is suitable for high-reliability applications. TI provides a range of reliability data, including FIT rates and MTBF, in the datasheet and reliability reports.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65381AQDAPRQ1 Overview

Use the download button to access the TPS65381AQDAPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
