A good PCB layout for the TPS65400QRGZRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended layout in the datasheet and application notes.
To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within the recommended input voltage range.
The TPS65400QRGZRQ1 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
Yes, the TPS65400QRGZRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured using automotive-grade processes. However, consult the datasheet and application notes for specific requirements and guidelines.
To troubleshoot issues, start by verifying the input voltage, output voltage, and component values. Check the PCB layout and ensure it meets the recommended guidelines. Use an oscilloscope to measure the output voltage and input voltage ripple. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65400QRGZRQ1 Overview

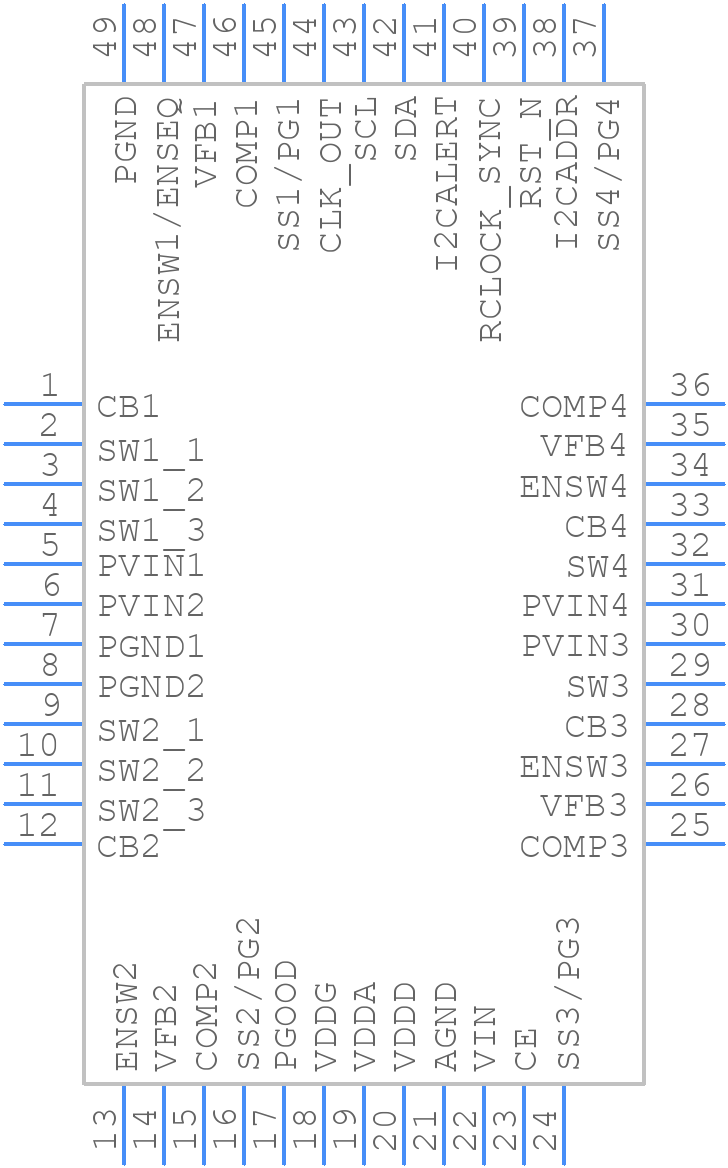

Use the download button to access the TPS65400QRGZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
