TPS65680RSNR - Texas Instruments

Description: TPS65680 2-Input, 18-Channel Configurable Level Shifter with OCP for GOA/GIP Displays

Download TPS65680RSNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

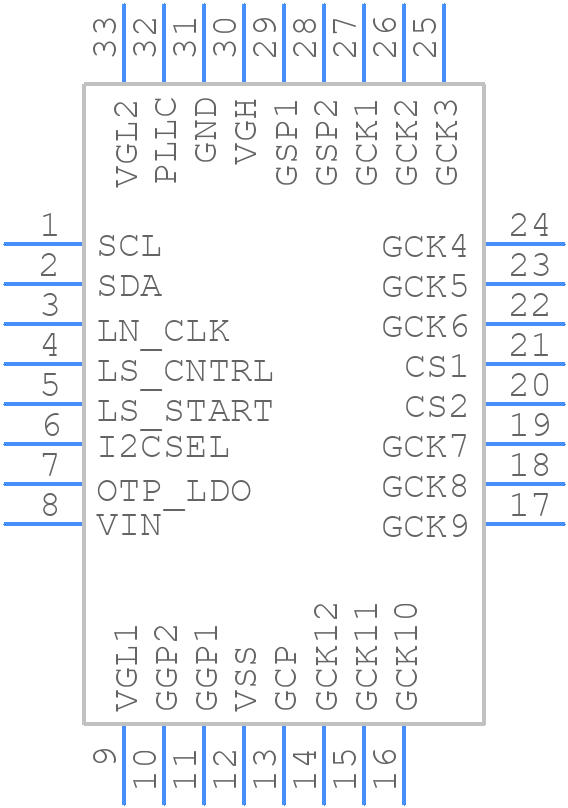

TPS65680RSNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65680RSNR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS65680RSNR*1
click to zoom
3D Models
TPS65680RSNR - Texas Instruments - 3D model - Quad Flat No-Lead - TPS65680RSNR*1
click to zoom

TPS65680RSNR Details

  • Manufacturer Part Number:

    TPS65680RSNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.525V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65680RSNR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the high-side FETs is 65V, as specified in the datasheet. However, it's recommended to derate the voltage to 55V for reliable operation.
  • Proper thermal management is crucial for the TPS65680RSNR. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider adding a heat sink if necessary. The device's thermal pad should be connected to a thermal plane on the PCB.
  • The recommended layout for the device's power paths is to keep the high-current paths short and wide, and to keep the high-frequency switching nodes away from sensitive analog circuits. A good layout will help minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues.
  • To minimize EMI, it's recommended to slow down the device's slew rate by adding a small capacitor (e.g., 10nF to 100nF) between the ENx pin and GND. This will help reduce the device's switching frequency and minimize EMI emissions.
  • The recommended input capacitor value for the device is 1uF to 10uF, with a voltage rating that matches the input voltage. The capacitor should be placed close to the device and connected between the VIN pin and GND.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65680RSNR Overview

Use the download button to access the TPS65680RSNR schematic symbol, PCB footprint, and 3D model.
