TPS657095YFFT - Texas Instruments

Description: Embedded Camera Module PMIC

Download TPS657095YFFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

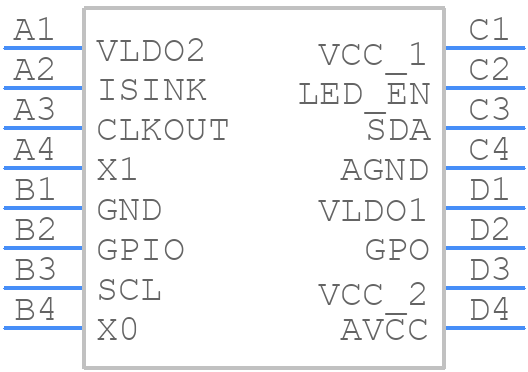

Symbol
TPS657095YFFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS657095YFFT - Texas Instruments PCB footprint - BGA - BGA - YFF0016 DSBGA - 0.625
click to zoom
3D Models
TPS657095YFFT - Texas Instruments - 3D model - BGA - YFF0016 DSBGA - 0.625
click to zoom

TPS657095YFFT Details

  • Manufacturer Part Number:

    TPS657095YFFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    3.7 V

  • JESD-30 Code:

    S-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.688 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    3.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.688 mm

TPS657095YFFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • The TPS657095YFFT is rated for operation from -40°C to 125°C. Ensure proper thermal design, including heat sinking and airflow, to maintain the device temperature within the specified range. Also, consider the thermal resistance of the package and PCB.
  • The TPS657095YFFT has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can cause permanent damage to the device. Ensure that the input voltage is within the recommended operating range of 4.5V to 5.5V.
  • The TPS657095YFFT has built-in POR and BOR features to ensure proper startup and operation. The POR feature resets the device during power-up, while the BOR feature resets the device during brown-out conditions. Ensure that your system design takes these features into account to prevent unexpected behavior.
  • The recommended output filter capacitor value depends on the specific application and desired output ripple. A general guideline is to use a capacitor with a value between 1uF and 10uF, with a voltage rating that exceeds the output voltage. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS657095YFFT Overview

Use the download button to access the TPS657095YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
