Part Image

TPS659108A1RSLR - Texas Instruments

Description: Power Management Specialized - PMIC Int Pwr Mgmt IC

Download TPS659108A1RSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

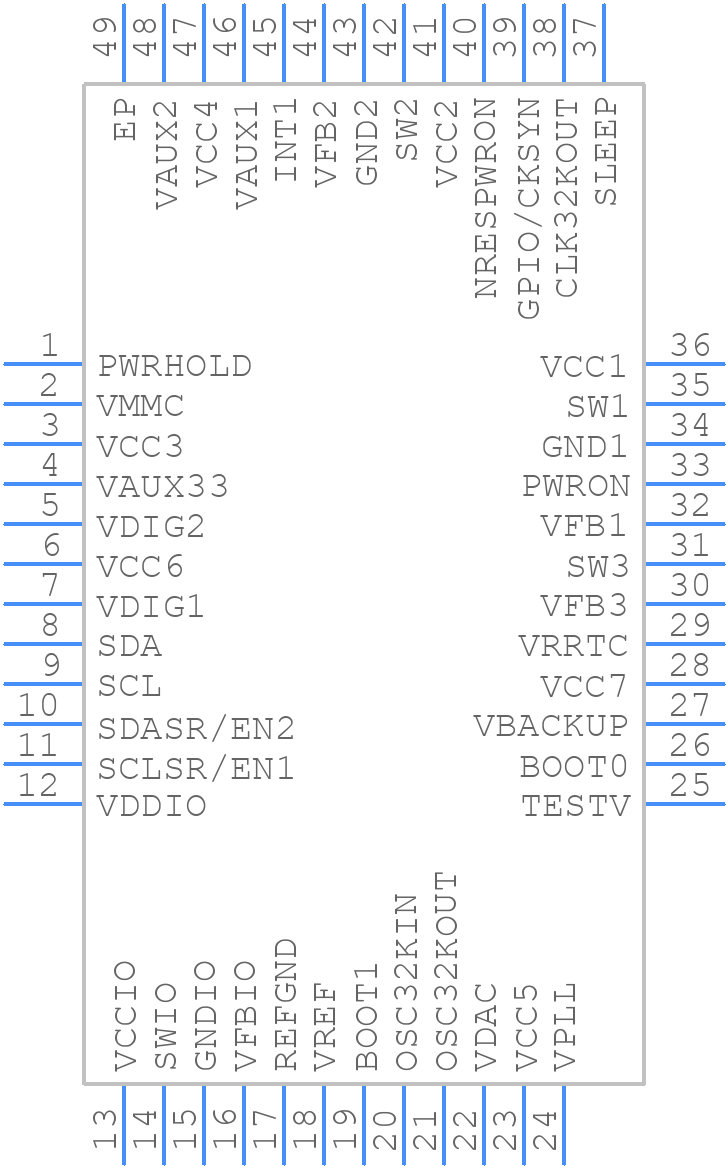

Symbol
TPS659108A1RSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS659108A1RSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)1
click to zoom
3D Models
TPS659108A1RSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)1
click to zoom

TPS659108A1RSLR Details

  • Manufacturer Part Number:

    TPS659108A1RSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS659108A1RSLR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS659108A1RSLR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper thermal performance, noise reduction, and signal integrity.
  • The TPS659108A1RSLR has a variety of configuration options. Texas Instruments provides a Configuration Tool (TPS659108A1-CFG-GUI) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be loaded into the device.
  • The maximum current capability of the TPS659108A1RSLR's power paths depends on the specific configuration and thermal design. However, the device can support up to 3A per power path, with a total of 12 power paths. It's essential to consult the datasheet and application notes for specific current capability and thermal design guidelines.
  • Texas Instruments provides a Troubleshooting Guide (SLUAAP5) that helps engineers identify and resolve common issues with the TPS659108A1RSLR. The guide covers topics such as power-up sequencing, voltage monitoring, and fault detection.
  • The TPS659108A1RSLR is a flexible power management IC that can be used with a variety of processors and SoCs. However, it's essential to consult the datasheet and application notes to ensure compatibility with your specific processor or SoC. Texas Instruments also provides a list of supported processors and SoCs on their website.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS659108A1RSLR Overview

Use the download button to access the TPS659108A1RSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
