TPS65910A3A1RSL - Texas Instruments

Description: Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family

Download TPS65910A3A1RSL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

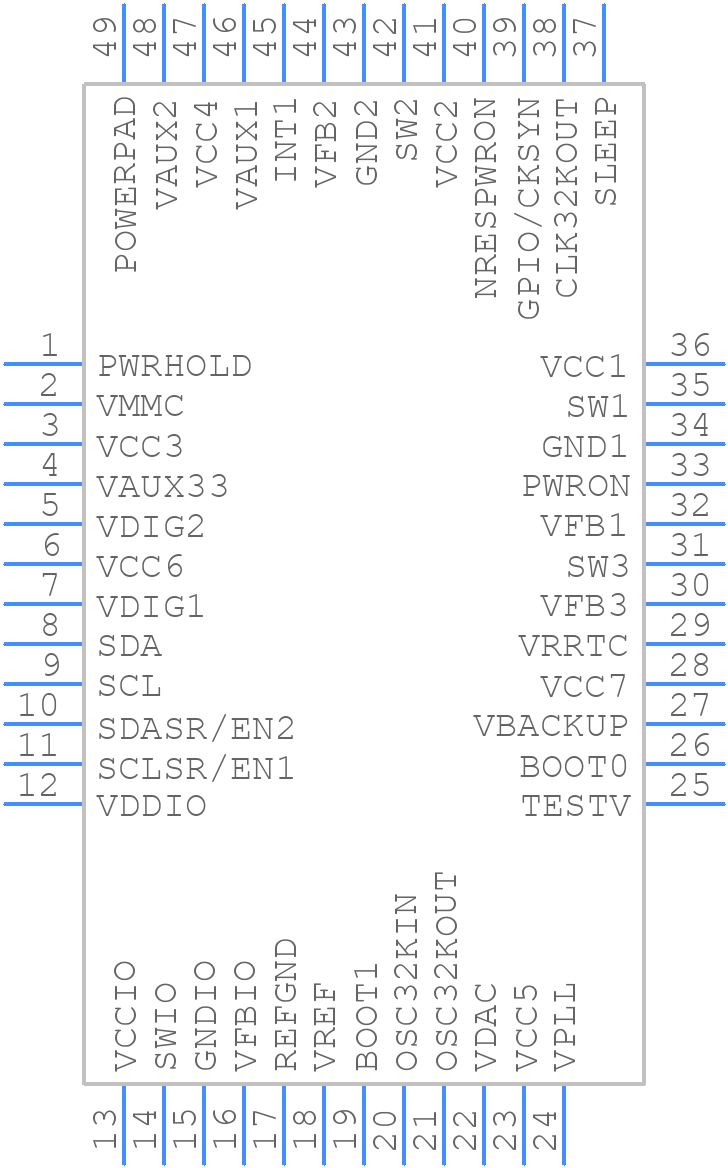

Symbol
TPS65910A3A1RSL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65910A3A1RSL - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS-S-PVQVFN-48
click to zoom
3D Models
TPS65910A3A1RSL - Texas Instruments - 3D model - Quad Flat No-Lead - TPS-S-PVQVFN-48
click to zoom

TPS65910A3A1RSL Details

  • Manufacturer Part Number:

    TPS65910A3A1RSL

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65910A3A1RSL Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65910A3A1RSL Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper operation and minimize electromagnetic interference (EMI).
  • The TPS65910A3A1RSL has a wide range of configuration options. Texas Instruments provides a Configuration Tool (TPS65910A3A1RSL-CFG) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be loaded into the device.
  • The maximum current rating for each output of the TPS65910A3A1RSL depends on the specific output and the thermal design of the system. Refer to the datasheet for the maximum current ratings for each output. Additionally, it's essential to consider the thermal design and heat sinking to ensure the device operates within its specified limits.
  • Texas Instruments provides a Troubleshooting Guide (SLUA623) that helps engineers identify and resolve common issues with the TPS65910A3A1RSL. The guide covers topics such as power-up sequencing, voltage monitoring, and fault detection.
  • The TPS65910A3A1RSL has a maximum junction temperature (TJ) of 125°C. It's essential to consider thermal design and heat sinking to ensure the device operates within its specified limits. Texas Instruments provides thermal design guidelines in the datasheet and application notes.
