Texas Instruments provides a recommended layout and routing guide in the TPS65910A3A1RSLR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
The TPS65910A3A1RSLR has a wide range of configuration options. Texas Instruments provides a configuration tool, the TPS65910 Configurator (TPS65910-CONFIG), which helps engineers configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
The TPS65910A3A1RSLR has a maximum current capability of 3A per channel. However, the actual current capability may be limited by the PCB design, thermal considerations, and other factors. It's essential to carefully evaluate the system design to ensure the device operates within its recommended operating conditions.
Texas Instruments provides a troubleshooting guide in the TPS65910A3A1RSLR datasheet (SLUS964). The guide covers common issues, such as power-up sequencing, voltage monitoring, and current limiting. Additionally, engineers can use the TPS65910A3A1RSLR Evaluation Module to test and debug their design.
Yes, the TPS65910A3A1RSLR is designed to work with other Texas Instruments devices, such as OMAP and Sitara processors. Texas Instruments provides reference designs and application notes that demonstrate how to use the TPS65910A3A1RSLR with these devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65910A3A1RSLR Overview

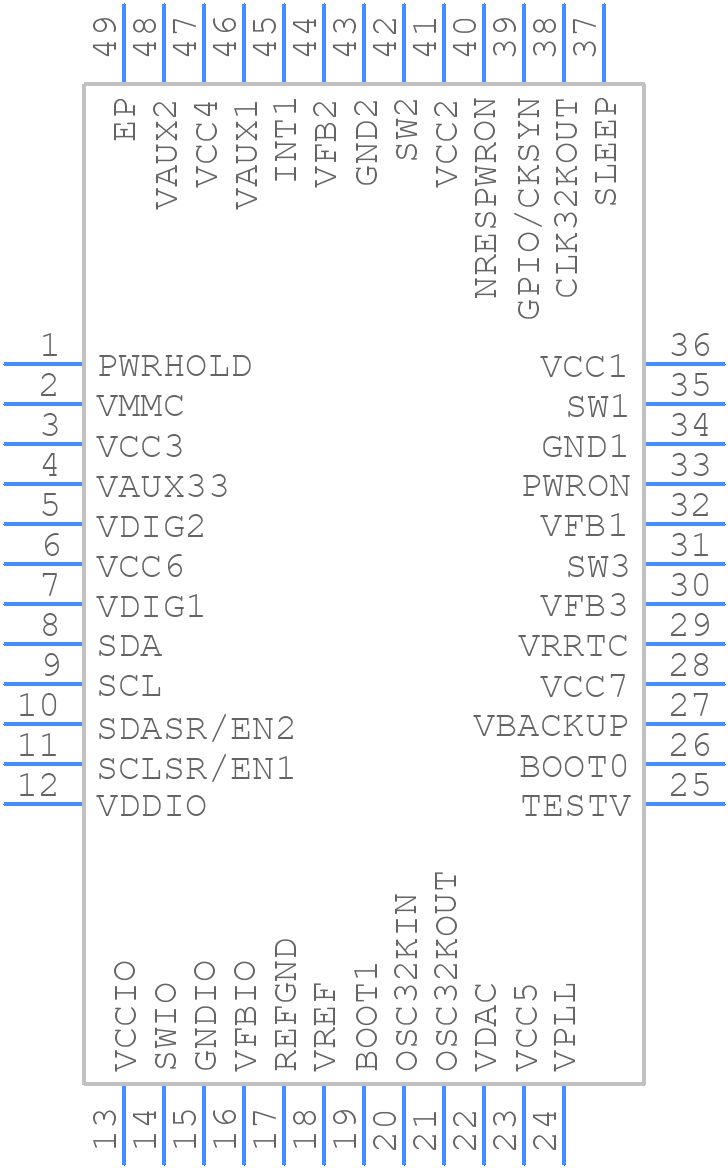

Use the download button to access the TPS65910A3A1RSLR schematic symbol, PCB footprint, and 3D model.
