TPS65910AA1RSL - Texas Instruments

Description: Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family

Download TPS65910AA1RSL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

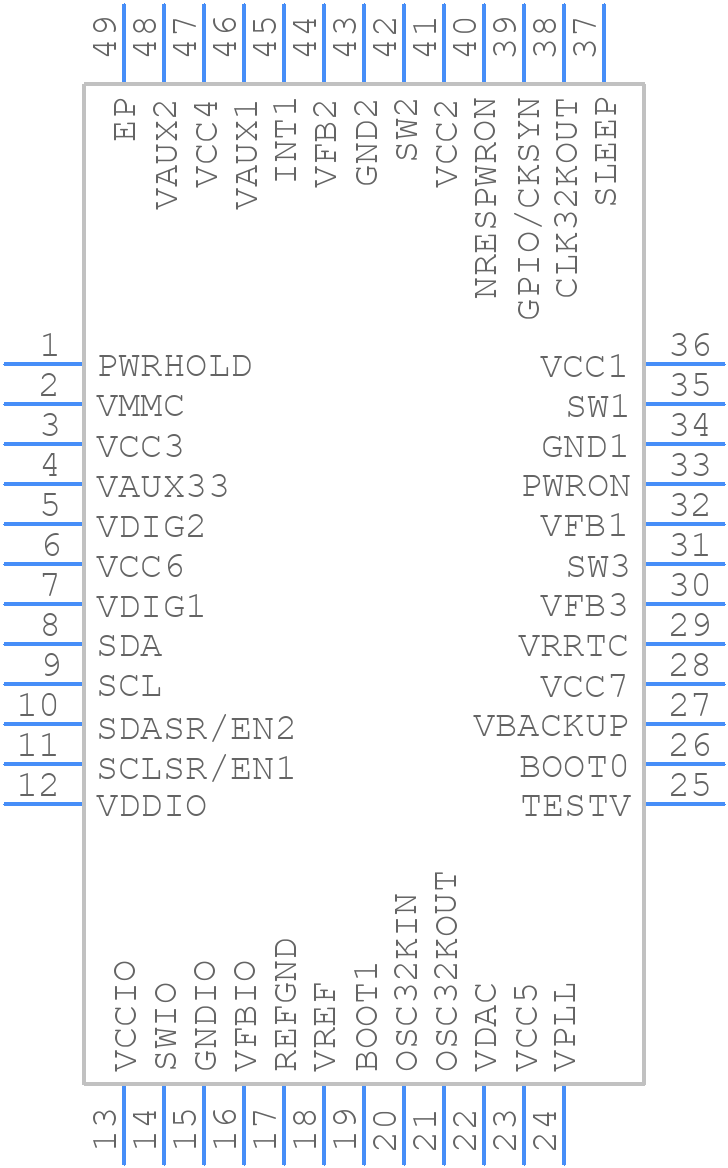

TPS65910AA1RSL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65910AA1RSL - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL(S-PVQFN-N48)_
click to zoom
3D Models
TPS65910AA1RSL - Texas Instruments - 3D model - Quad Flat No-Lead - RSL(S-PVQFN-N48)_
click to zoom

TPS65910AA1RSL Details

  • Manufacturer Part Number:

    TPS65910AA1RSL

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.7 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Outputs:

    12

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65910AA1RSL Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65910AA1RSL datasheet and application notes. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
  • The TPS65910AA1RSL has a flexible power sequencing and reset timing architecture. Engineers can use the device's configuration registers and external resistors to customize the power-up and power-down sequences. TI provides application notes and software tools to help optimize the power sequencing and reset timing for specific applications.
  • The TPS65910AA1RSL has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Engineers should also consider the device's thermal resistance, junction temperature, and power dissipation when designing the PCB and thermal management system.
  • Texas Instruments provides a range of debugging tools and techniques, including the TPS65910AA1RSL evaluation module, software development kits, and application notes. Engineers can use these resources to troubleshoot and debug issues related to power sequencing, reset timing, and other aspects of the device's operation.
  • The TPS65910AA1RSL is designed to minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC). Engineers should follow TI's guidelines for PCB layout, component placement, and shielding to minimize EMI and ensure EMC compliance.
