TPS659161RGZR - Texas Instruments

Description: TPS65916 Power Management Unit (PMU) for Processor

Download TPS659161RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

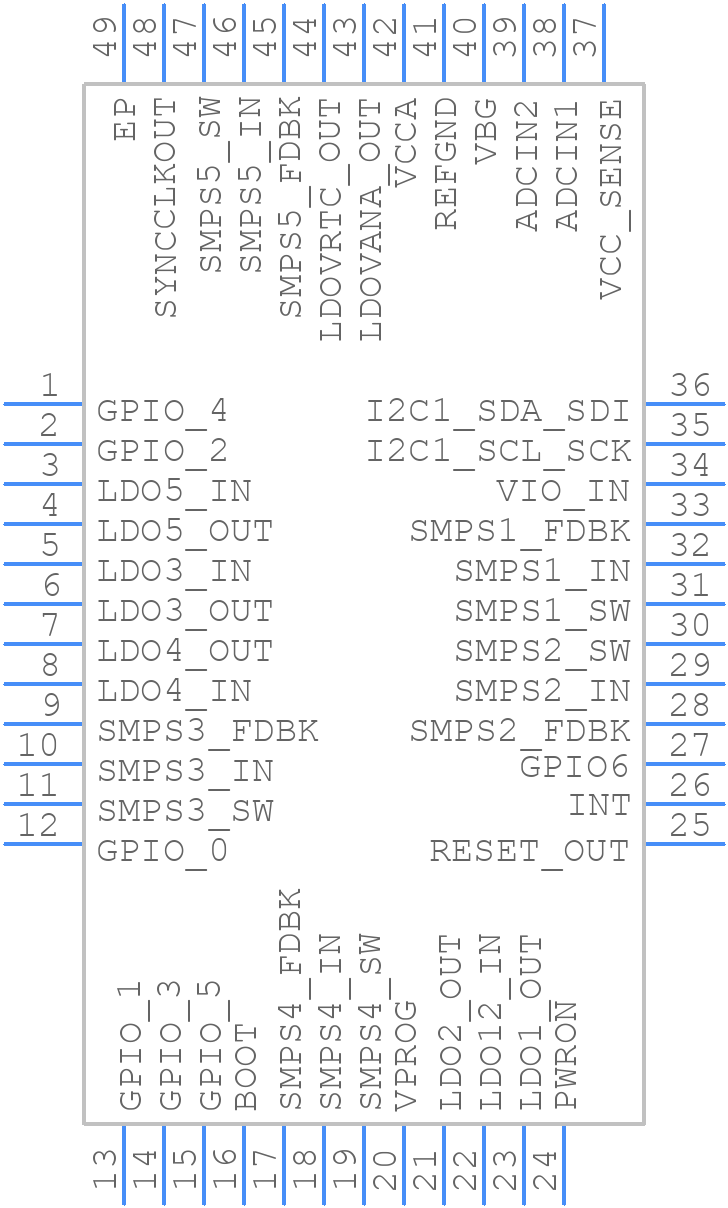

TPS659161RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS659161RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS659161RGZR
click to zoom
3D Models
TPS659161RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - TPS659161RGZR
click to zoom

TPS659161RGZR Details

  • Manufacturer Part Number:

    TPS659161RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-03-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    3.135 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Outputs:

    10

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS659161RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS659161RGZR Evaluation Module User's Guide (SLUUAC3). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS659161RGZR has a wide range of configuration options. Texas Instruments provides a software tool called the TPS659161RGZR Configurator Tool (available on the TI website) that helps engineers configure the device for their specific application.
  • The maximum current rating for each output of the TPS659161RGZR varies. Refer to the datasheet (SLVSAB5) for specific current ratings for each output. For example, the maximum current rating for the VOUT1 output is 3.5 A, while the maximum current rating for the VOUT2 output is 2 A.
  • Texas Instruments provides a troubleshooting guide in the TPS659161RGZR datasheet (SLVSAB5) and the TPS659161RGZR Evaluation Module User's Guide (SLUUAC3). Additionally, engineers can use the TI E2E community forum to ask questions and get help from TI experts and other engineers.
  • The TPS659161RGZR has a maximum junction temperature rating of 150°C. Engineers should ensure proper thermal design and heat sinking to keep the device within its recommended operating temperature range. Refer to the datasheet (SLVSAB5) for thermal design guidelines.
