TPS65920A2ZCH - Texas Instruments

Description: Integrated Power Management IC (PMIC) with 3 DC/DC's, 4 LDO's, USB HS Transceiver

Download TPS65920A2ZCH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPS65920A2ZCH - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

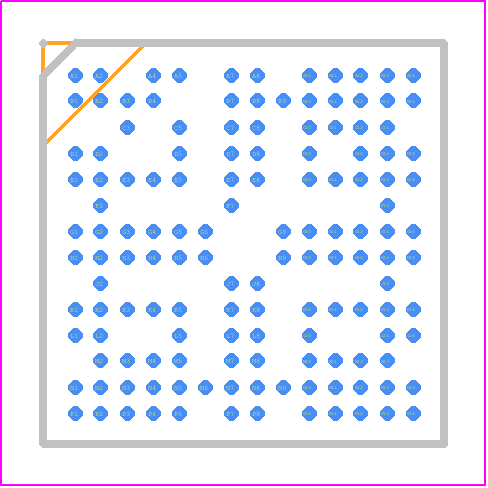

TPS65920A2ZCH - Texas Instruments PCB footprint - BGA - BGA - ZCH(S-PBGA-N139)
click to zoom
3D Models
TPS65920A2ZCH - Texas Instruments - 3D model - BGA - ZCH(S-PBGA-N139)
click to zoom

TPS65920A2ZCH Details

  • Manufacturer Part Number:

    TPS65920A2ZCH

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    139

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PBGA-B139

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Outputs:

    7

  • Number of Terminals:

    139

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA139,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    3.2

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TPS65920A2ZCH Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65920A2ZCH Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper thermal performance, noise reduction, and signal integrity.
  • The TPS65920A2ZCH has a wide range of configuration options. Texas Instruments provides a Power Management Unit (PMU) Configuration Tool (SWCU126) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
  • The maximum current capability of the TPS65920A2ZCH's power rails depends on the specific rail and the thermal design of the system. The datasheet provides thermal resistance values and power dissipation limits. Engineers should perform thermal analysis and simulation to determine the maximum current capability for their specific application.
  • Texas Instruments provides a troubleshooting guide in the TPS65920A2ZCH datasheet (SLVSBL7). Engineers can also use the PMU Configuration Tool to debug and monitor the device's operation. Additionally, Texas Instruments offers a range of development tools and support resources, including the E2E community forum.
  • The TPS65920A2ZCH is a general-purpose power management IC that can be used with a wide range of processors and SoCs. However, compatibility depends on the specific power requirements and interfaces of the processor or SoC. Engineers should review the datasheet and consult with Texas Instruments support to ensure compatibility.
