TPS65920A2ZCHR - Texas Instruments

Description: Power Management Specialized - PMIC Int Pwr Mgmt IC

Download TPS65920A2ZCHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPS65920A2ZCHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

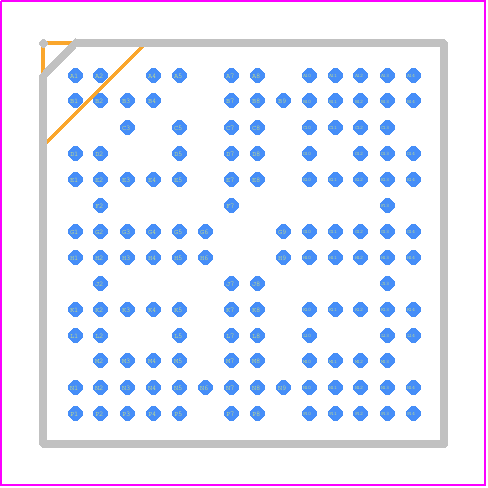

TPS65920A2ZCHR - Texas Instruments PCB footprint - BGA - BGA - ZCH(S-PBGA-N139)
click to zoom
3D Models
TPS65920A2ZCHR - Texas Instruments - 3D model - BGA - ZCH(S-PBGA-N139)
click to zoom

TPS65920A2ZCHR Details

  • Manufacturer Part Number:

    TPS65920A2ZCHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    139

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PBGA-B139

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Outputs:

    7

  • Number of Terminals:

    139

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA139,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    3.2

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TPS65920A2ZCHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65920A2ZCHR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS65920A2ZCHR has a wide range of configuration options. Texas Instruments provides a software tool called the TPS65920A2ZCHR Configurator Tool (TPS65920A2ZCHR-CT) that helps engineers configure the device for their specific application. The tool provides a graphical user interface to set up the device's registers and generate the necessary code.
  • The maximum current rating for the TPS65920A2ZCHR's power switches is 2.5A per switch. However, the actual current rating may be limited by the PCB's thermal design and the device's thermal performance. It's essential to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • Texas Instruments provides a troubleshooting guide in the TPS65920A2ZCHR datasheet (SLVSAB5). The guide covers common issues and provides steps to identify and resolve problems. Additionally, engineers can use the TPS65920A2ZCHR Evaluation Module to test and debug their design.
  • Yes, the TPS65920A2ZCHR is designed to work with other Texas Instruments devices, such as OMAP and Sitara processors. Texas Instruments provides reference designs and software development kits (SDKs) to help engineers integrate the TPS65920A2ZCHR with other devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65920A2ZCHR Overview

Use the download button to access the TPS65920A2ZCHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
