TPS65994AERSLR - Texas Instruments

Description: UTwo 5-V, 3-A, 29-mΩ sourcing switches – Adjustable current limitingSB PD 3.0 compliant

Download TPS65994AERSLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

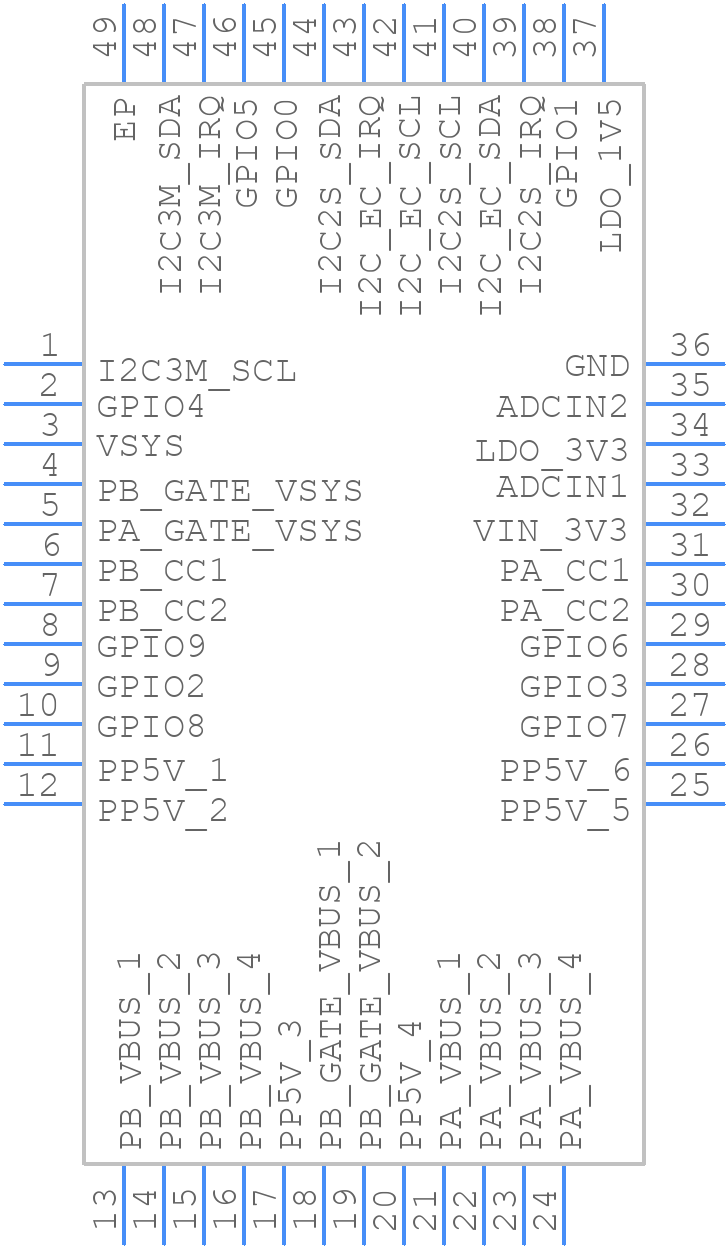

TPS65994AERSLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65994AERSLR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom
3D Models
TPS65994AERSLR - Texas Instruments - 3D model - Quad Flat No-Lead - RSL (S-PVQFN-N48)
click to zoom

TPS65994AERSLR Details

  • Manufacturer Part Number:

    TPS65994AERSLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.66V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65994AERSLR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65994AERSLR Evaluation Module User's Guide (SLUUAC3). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS65994AERSLR has a wide range of configuration options. Texas Instruments provides a configuration tool, the TPS65994AERSLR Configurator, which helps engineers configure the device for their specific application. The tool is available on the Texas Instruments website.
  • The maximum current rating for each output of the TPS65994AERSLR depends on the specific output. Refer to the datasheet for the specific current ratings for each output. For example, the VOUT1 output has a maximum current rating of 3.5 A, while the VOUT2 output has a maximum current rating of 2 A.
  • Texas Instruments provides a troubleshooting guide in the TPS65994AERSLR datasheet. Additionally, engineers can use the TPS65994AERSLR Evaluation Module to test and debug their design. The module provides access to various test points and allows engineers to monitor the device's operation.
  • The TPS65994AERSLR has a maximum junction temperature of 125°C. Engineers should ensure proper thermal design and heat sinking to keep the device within its recommended operating temperature range. The datasheet provides thermal resistance values and thermal design guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65994AERSLR Overview

Use the download button to access the TPS65994AERSLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
