TPS66020YBGR - Texas Instruments

Description: Power Management Specialized - PMIC USB-C/PD 20V sink & 5V source power switch with 3.3V dead battery LDO 28-DSBGA -10 to 85

Download TPS66020YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

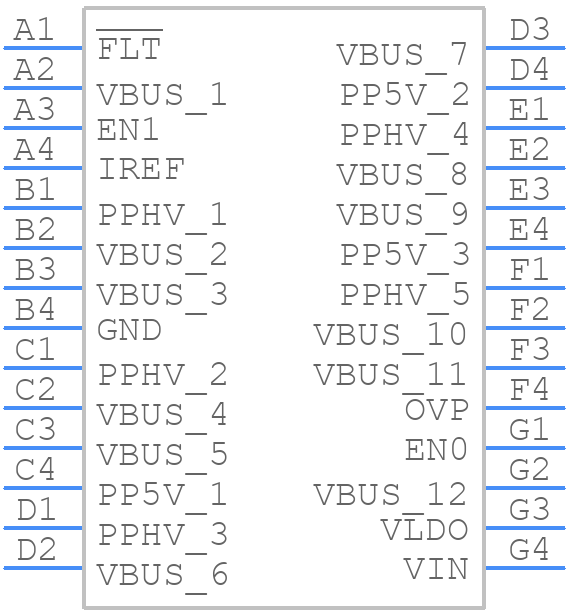

TPS66020YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS66020YBGR - Texas Instruments PCB footprint - BGA - BGA - YBG0028
click to zoom
3D Models
TPS66020YBGR - Texas Instruments - 3D model - BGA - YBG0028
click to zoom

TPS66020YBGR Details

  • Manufacturer Part Number:

    TPS66020YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PBGA-B28

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.85 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS66020YBGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS66020YBGR datasheet (section 10.2) and in the TPS66020YBGR Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet (section 7.3.1) for more information.
  • The maximum input voltage rating for the TPS66020YBGR is 18V. However, it's recommended to operate the device within the specified input voltage range (4.5V to 15V) to ensure optimal performance and reliability.
  • The TPS66020YBGR has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit threshold. Refer to the datasheet (section 7.3.4) for more information and example circuits.
  • The thermal derating curve for the TPS66020YBGR is provided in the datasheet (section 10.1). The device's output current capability decreases as the junction temperature increases. Ensure proper thermal management and heat sinking to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS66020YBGR Overview

Use the download button to access the TPS66020YBGR schematic symbol, PCB footprint, and 3D model.
