TPS66021YBGR - Texas Instruments

Description: Power Management Specialized - PMIC USB-C/PD 20V sink & 5V source power switch with 5V dead battery LDO 28-DSBGA -10 to 85

Download TPS66021YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

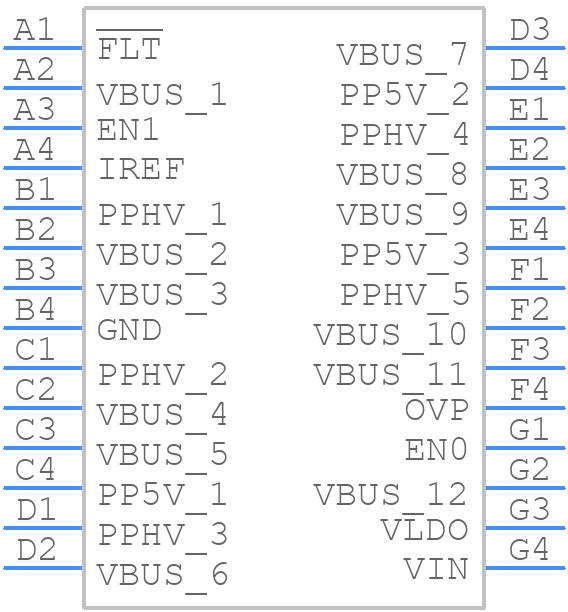

TPS66021YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS66021YBGR - Texas Instruments PCB footprint - BGA - BGA - YBG0028
click to zoom
3D Models
TPS66021YBGR - Texas Instruments - 3D model - BGA - YBG0028
click to zoom

TPS66021YBGR Details

  • Manufacturer Part Number:

    TPS66021YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PBGA-B28

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

TPS66021YBGR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS66021YBGR is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value, as specified in the datasheet.
  • The minimum input capacitance required for the TPS66021YBGR is 10uF, but it's recommended to use a higher value (e.g., 22uF) for better performance and stability.
  • The TPS66021YBGR is rated for operation up to 125°C, but it's essential to ensure proper thermal management and consider the device's power dissipation and junction temperature to avoid overheating.
  • To minimize noise and EMI, it's crucial to follow proper PCB layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and loops.
