Texas Instruments provides a recommended PCB layout in the TPS66120YBGR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI offers a PCB layout checklist and a layout guide for DC/DC converters that can be helpful.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. TI provides a list of recommended inductors in the datasheet, and also offers an inductor selection guide that can help engineers choose the right inductor for their design.
The TPS66120YBGR can operate in ambient temperatures up to 85°C, but the junction temperature (TJ) should not exceed 125°C. Engineers should ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
Yes, the TPS66120YBGR is designed to meet the requirements of high-reliability applications, such as automotive, industrial, and medical devices. TI provides a range of reliability and quality data, including AEC-Q100 qualification, to support the use of the device in these applications.
TI provides a range of troubleshooting resources, including application notes, FAQs, and technical support. Engineers can also use tools such as oscilloscopes and logic analyzers to debug their design and identify issues with the TPS66120YBGR.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS66120YBGR Overview

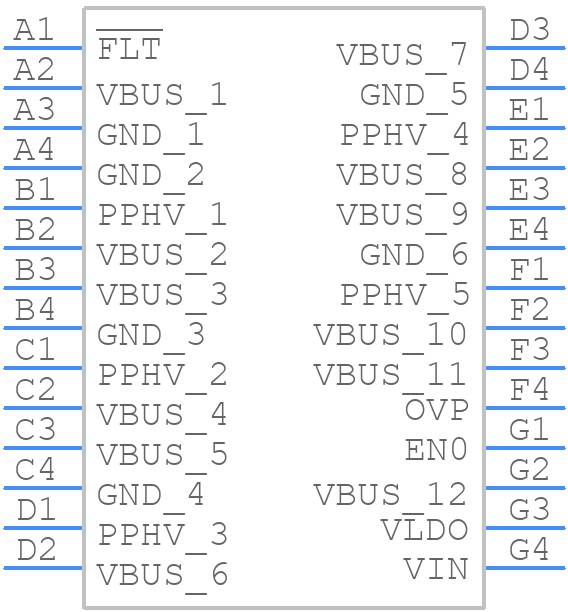

Use the download button to access the TPS66120YBGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS66,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
