TRF7960RHBT - Texas Instruments

Description: TRF7960 Multi-Protocol Fully Integrated 13.56-MHz RFID Reader/Writer IC

Download TRF7960RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

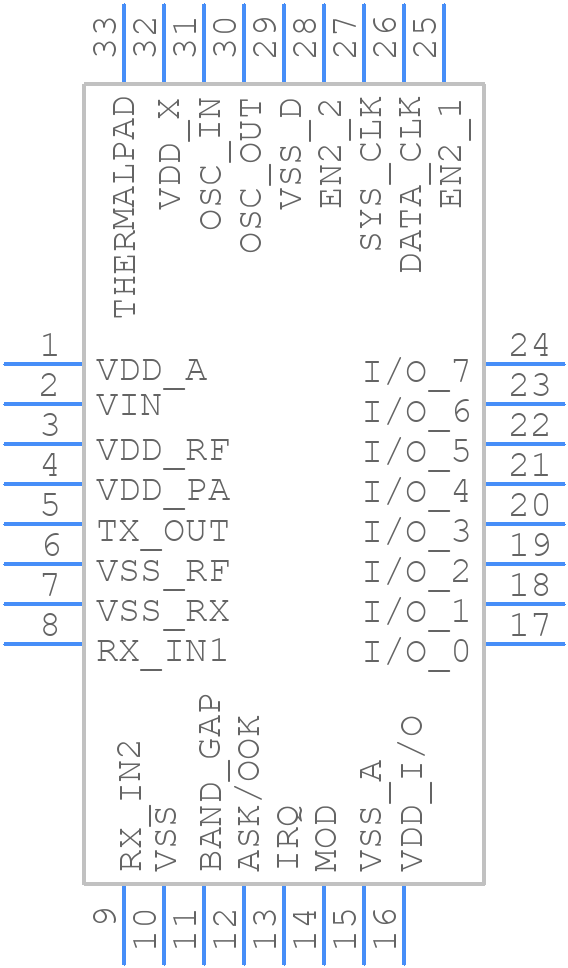

Symbol
TRF7960RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF7960RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom
3D Models
TRF7960RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom

TRF7960RHBT Details

  • Manufacturer Part Number:

    TRF7960RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 13.56 MHz

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF7960RHBT Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TRF7960RHBT involves keeping the RF traces as short as possible, using a solid ground plane, and placing the antenna as close to the chip as possible. A 4-layer PCB with a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the TRF7960RHBT datasheet and application notes.
  • Optimizing the antenna design for the TRF7960RHBT involves selecting the right antenna type (e.g., dipole, patch, or loop), tuning the antenna to the desired frequency, and ensuring proper impedance matching. TI provides antenna design guidelines and examples in the TRF7960RHBT datasheet and application notes.
  • The TRF7960RHBT has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced performance and reliability. It's essential to ensure proper thermal management and heat dissipation to maintain reliable operation.
  • Implementing antenna diversity with the TRF7960RHBT involves using multiple antennas and switching between them to improve reception and transmission. TI provides guidelines and examples for antenna diversity implementation in the TRF7960RHBT datasheet and application notes.
  • The recommended power supply decoupling and filtering techniques for the TRF7960RHBT involve using a combination of capacitors and inductors to filter out noise and ensure a stable power supply. TI provides guidelines and examples for power supply decoupling and filtering in the TRF7960RHBT datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF7960RHBT Overview

Use the download button to access the TRF7960RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
