The recommended PCB layout for the TRF7963ARHBR involves keeping the RF traces as short as possible, using a solid ground plane, and placing the antenna as close to the IC as possible. A 4-layer PCB with a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
Optimizing the antenna design for the TRF7963ARHBR involves selecting the right antenna type (e.g., dipole, patch, or loop), tuning the antenna to the desired frequency, and ensuring impedance matching. TI provides antenna design guidelines and examples in the datasheet and application notes.
The TRF7963ARHBR has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures up to 105°C for short periods during power-up or power-down. It's essential to ensure proper thermal design and heat dissipation to maintain reliability.
Implementing antenna diversity with the TRF7963ARHBR involves using multiple antennas and switching between them to improve reception and reduce multipath effects. TI provides guidelines for antenna diversity implementation in the datasheet and application notes.
The TRF7963ARHBR has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. TI recommends using ESD-protective packaging, handling devices by the body, and using an ESD wrist strap or mat during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF7963ARHBR Overview

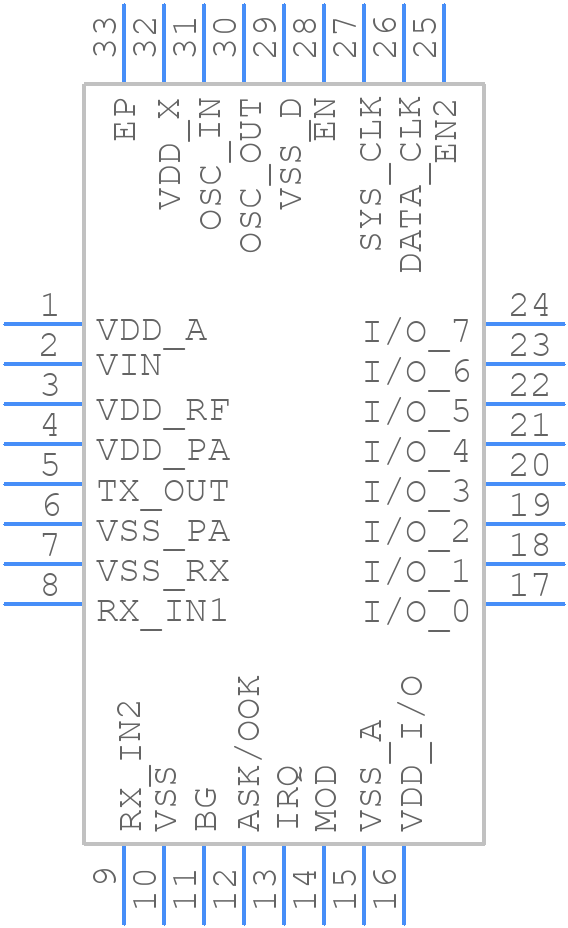

Use the download button to access the TRF7963ARHBR schematic symbol, PCB footprint, and 3D model.
