The recommended PCB layout for the TRF7963ARHBT involves keeping the RF traces as short as possible, using a solid ground plane, and placing the antenna as close to the chip as possible. A 4-layer PCB with a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
Optimizing the antenna design for the TRF7963ARHBT involves selecting the right antenna type, size, and shape for the specific application. TI provides antenna design guidelines and recommendations in the datasheet and application notes. Additionally, using antenna simulation software and testing different antenna designs can help optimize the antenna performance.
The maximum operating temperature range for the TRF7963ARHBT is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced performance and reliability. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
Implementing antenna tuning for the TRF7963ARHBT involves using a tuning network consisting of capacitors and inductors to match the antenna impedance to the chip's impedance. TI provides guidelines and recommendations for antenna tuning in the datasheet and application notes. Additionally, using impedance measurement tools and simulation software can help optimize the tuning network.
The TRF7963ARHBT has built-in ESD protection, but it's still essential to follow proper ESD handling and protection procedures during manufacturing, assembly, and testing. TI recommends following the JEDEC standard for ESD protection and using ESD-protective materials and equipment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF7963ARHBT Overview

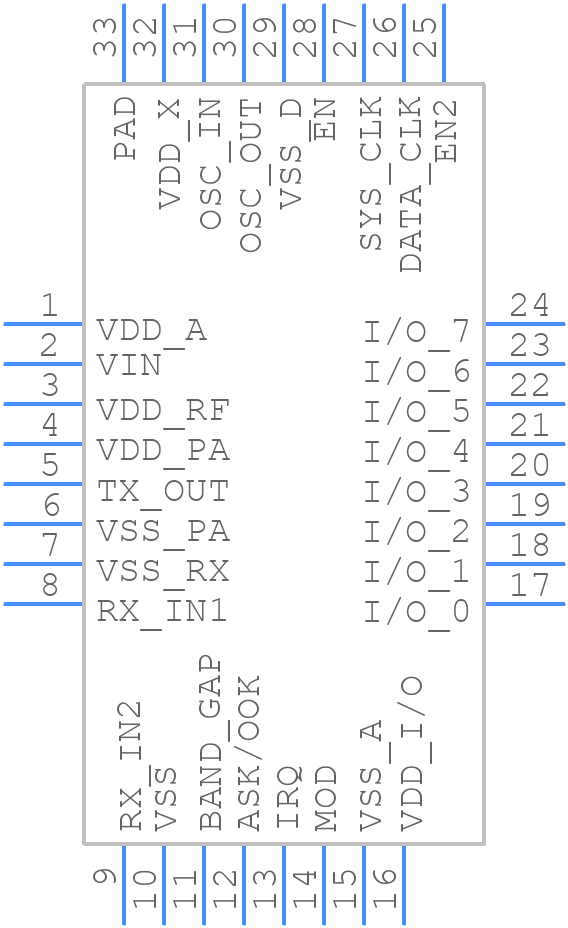

Use the download button to access the TRF7963ARHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
