TRF7970ARHBT - Texas Instruments

Description: Multi-Protocol Fully Integrated 13.56-MHz NFC / RFID Transceiver IC

Download TRF7970ARHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

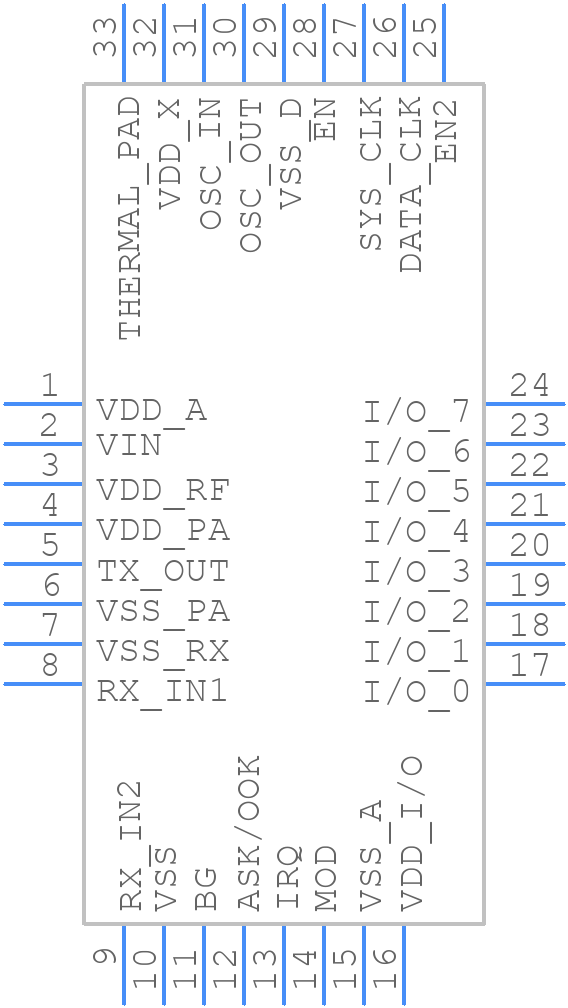

TRF7970ARHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF7970ARHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom
3D Models
TRF7970ARHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom

TRF7970ARHBT Details

  • Manufacturer Part Number:

    TRF7970ARHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 13.56 MHz

  • Data Rate:

    848 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF7970ARHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAA533, which includes guidelines for component placement, routing, and grounding to ensure optimal performance.
  • The TRF7970ARHBT datasheet provides general guidelines for antenna design, but for optimal performance, it's recommended to use TI's Antenna Design Guide (SWRA461) and Antenna Simulator Tool (SWRC215) to simulate and optimize the antenna design for specific applications.
  • The TRF7970ARHBT is rated for operation from -40°C to 85°C, but it's essential to consider the specific application's thermal requirements and ensure proper thermal management to prevent overheating.
  • Antenna diversity can be implemented using multiple antennas and switching between them using external switches or a dedicated antenna diversity IC. TI provides an application note (SLAA533) that discusses antenna diversity implementation for the TRF7970ARHBT.
  • TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with values ranging from 10nF to 10uF, depending on the specific application and noise requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF7970ARHBT Overview

Use the download button to access the TRF7970ARHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
