TRS208CDBR - Texas Instruments

Description: 5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD Protection

Download TRS208CDBR Model

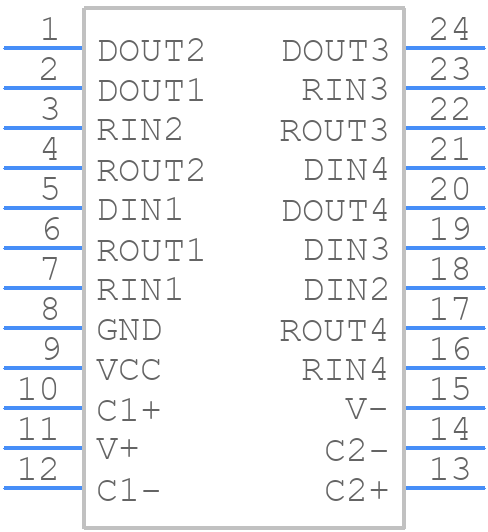

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TRS208CDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
TRS208CDBR - Texas Instruments  - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

TRS208CDBR Details

  • Manufacturer Part Number:

    TRS208CDBR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.0002 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-F; TIA-232-F; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    5.3 mm

TRS208CDBR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the TRS208CDBR placed close to the power source, using a solid ground plane, and minimizing trace lengths to reduce EMI and noise. Additionally, it's recommended to use a 10nF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The TRS208CDBR requires a single 3.3V or 5V power supply, and it's recommended to power it up before the input signals. The power sequencing requirements are not explicitly stated in the datasheet, but it's generally recommended to power up the device before applying input signals to prevent latch-up or damage.
  • The TRS208CDBR can handle data rates up to 100Mbps and frequencies up to 50MHz. However, the actual data rate and frequency handling capability may vary depending on the specific application, PCB layout, and signal quality.
  • The enable pin (EN) is used to enable or disable the TRS208CDBR. When EN is high, the device is enabled, and when EN is low, the device is disabled. It's recommended to tie the EN pin to VCC or use a pull-up resistor to ensure the device is enabled during normal operation.
  • The TRS208CDBR requires a termination scheme to match the impedance of the transmission line. A common termination scheme is to use a 50Ω resistor in series with the output pin and a 50Ω resistor to ground. The impedance matching can be achieved by using a resistive divider or a transmission line with a characteristic impedance of 50Ω.
