TRS3318ECDBR - Texas Instruments

Description: 2.5-V 460-Kbps RS-232 Transceiver With +/-15-kV ESD Protection

Download TRS3318ECDBR Model
Schematic

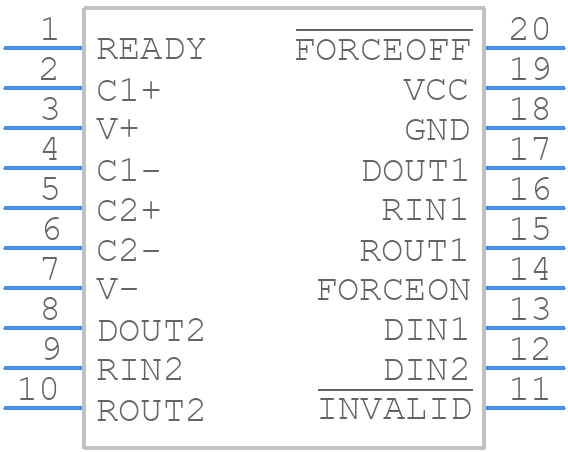

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TRS3318ECDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G20)
click to zoom
3D Models
TRS3318ECDBR - Texas Instruments  - 3D model - Small Outline Packages - DB (R-PDSO-G20)
click to zoom

TRS3318ECDBR Details

  • Manufacturer Part Number:

    TRS3318ECDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    7.4 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0005 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    175 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    3 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    3 V

  • Supply Voltage1-Min:

    2.25 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    175 ns

  • Width:

    5.3 mm
