TS5USBC412IYFFT - Texas Instruments

Description: USB Interface IC

Download TS5USBC412IYFFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

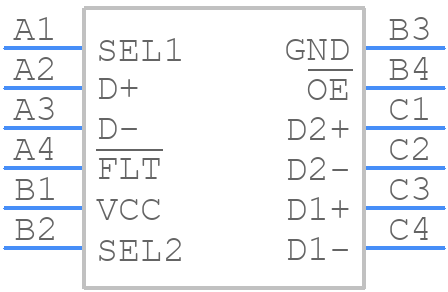

Symbol
TS5USBC412IYFFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS5USBC412IYFFT - Texas Instruments PCB footprint - BGA - BGA - YFF0012-C01-
click to zoom
3D Models
TS5USBC412IYFFT - Texas Instruments - 3D model - BGA - YFF0012-C01-
click to zoom

TS5USBC412IYFFT Details

  • Manufacturer Part Number:

    TS5USBC412IYFFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-03-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • Bandwidth-Nom:

    1200 MHz

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.598 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.022 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    250000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.198 mm

TS5USBC412IYFFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAU73, which includes guidelines for signal routing, component placement, and thermal management to ensure optimal performance and minimize signal integrity issues.
  • The TS5USBC412IYFFT has built-in fault detection and hot-swapping capabilities. Engineers can use the device's fault detection pins (FAULT and FLTOUT) to detect overcurrent, overvoltage, and undervoltage conditions. Additionally, the device supports hot-swapping through its automatic switch-on and switch-off features.
  • The TS5USBC412IYFFT supports cable lengths up to 3 meters (10 feet) for USB 3.2 Gen 2 (10 Gbps) and up to 5 meters (16.4 feet) for USB 2.0 (480 Mbps) applications, assuming a good quality cable with minimal signal attenuation.
  • To ensure EMI compliance, engineers should follow proper PCB layout and design practices, such as using shielding, grounding, and filtering techniques. Additionally, the TS5USBC412IYFFT has built-in EMI filtering and shielding, which helps to reduce electromagnetic radiation and susceptibility.
  • The TS5USBC412IYFFT has a typical power consumption of 150 mW (VCC = 3.3 V, no load). To optimize power management, engineers can use the device's low-power mode, which reduces power consumption to 10 mW (typical). Additionally, the device supports dynamic voltage scaling and can be powered down when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS5USBC412IYFFT Overview

Use the download button to access the TS5USBC412IYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
