Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the IEEE 1394a standard for PCB layout guidelines. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce noise and improve signal integrity.
To ensure reliable operation over the full industrial temperature range (-40°C to 85°C), it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and selecting components with a suitable temperature rating. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
While the TSB43AB23PDTG4 can operate with a lower voltage supply, it may affect the device's performance and functionality. A lower voltage supply may reduce the device's output current capability, increase the rise and fall times, and affect the device's ability to drive heavy loads. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets the required specifications with a lower voltage supply.
To troubleshoot issues with the LLC, start by verifying the device's configuration and register settings. Use a logic analyzer or oscilloscope to capture and analyze the LLC's output signals. Check for errors in the packet transmission and reception, and verify that the device is properly configured for the desired speed and mode. Consult the datasheet and Texas Instruments' application notes for more detailed troubleshooting guidelines.
The TSB43AB23PDTG4 is a high-speed device that can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and consider using EMI filters or absorbers. Additionally, ensure that the device is properly decoupled and that the power supply is well-regulated to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSB43AB23PDTG4 Overview

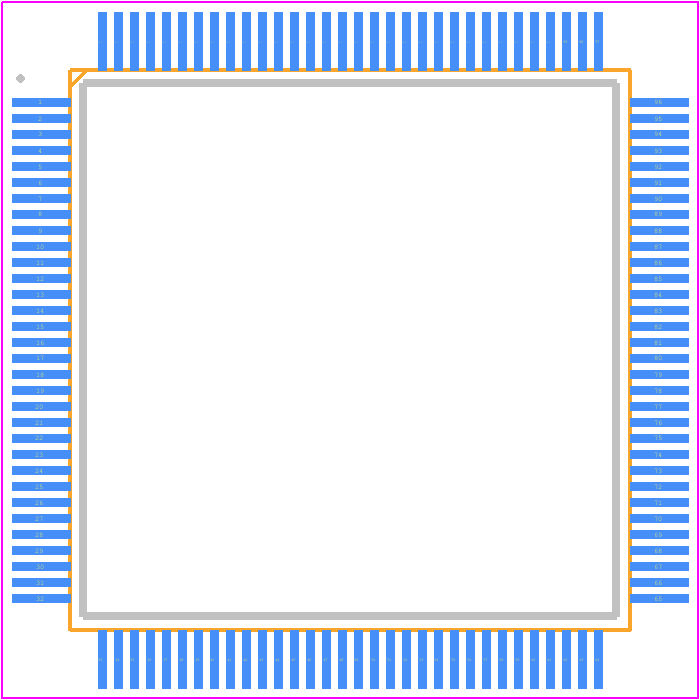

Use the download button to access the TSB43AB23PDTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSB43,
or try a keyword search, such as Serial IO/Communication Controllers
