TSC2003IPWR - Texas Instruments

Description: 4-wire resistive touch screen controller with direct battery measurement and temperature sensor&n

Download TSC2003IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

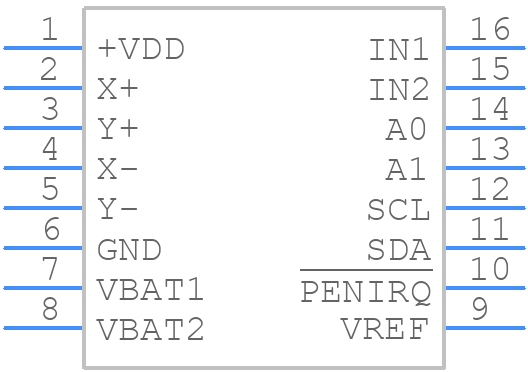

Symbol
TSC2003IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2003IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
TSC2003IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

TSC2003IPWR Details

  • Manufacturer Part Number:

    TSC2003IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLER

TSC2003IPWR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TSC2003IPWR involves keeping the device close to the touch sensor, using a solid ground plane, and minimizing the length of the traces connecting the device to the sensor. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the sensitivity of the TSC2003IPWR, adjust the gain settings, ensure proper sensor design and layout, and minimize noise and interference in the system. Additionally, adjusting the threshold settings and using a suitable sensor material can also improve sensitivity.
  • The maximum operating frequency of the TSC2003IPWR is 200 kHz. However, the recommended operating frequency is typically between 100 kHz to 150 kHz for optimal performance.
  • To handle EMI with the TSC2003IPWR, use proper shielding, grounding, and layout techniques. Ensure that the device is placed in a shielded area, and use a common mode choke or ferrite bead to filter out high-frequency noise.
  • The recommended power-up sequence for the TSC2003IPWR involves powering up the device after the power supply has stabilized, and ensuring that the voltage supply is within the recommended operating range.
