Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The TSC2046EQPWRQ1 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
The recommended input impedance for the TSC2046EQPWRQ1 is 50 ohms, which is typical for most touch screen controllers. However, the input impedance may vary depending on the specific application and touch screen design.
Calibration involves adjusting the touch screen controller's sensitivity and threshold settings to optimize performance. Texas Instruments provides a calibration guide and software tools to help with this process. Additionally, consider factors such as touch screen material, size, and environmental conditions during calibration.
The maximum operating frequency of the TSC2046EQPWRQ1 is 100 kHz, which is the maximum frequency of the touch screen controller's clock input. However, the actual operating frequency may be lower depending on the specific application and touch screen design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TSC2046EQPWRQ1 Overview

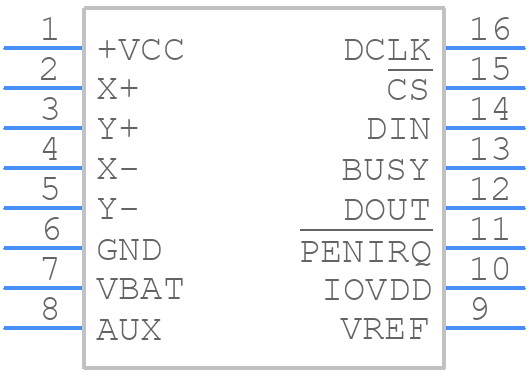

Use the download button to access the TSC2046EQPWRQ1 schematic symbol, PCB footprint, and 3D model.
