A good PCB layout for the TSC2046IPW involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the touch sensors. Additionally, using a shielded cable for the touch sensor connections and keeping the analog and digital signals separate can help minimize noise.
Calibration involves adjusting the sensitivity and threshold settings to optimize the touch sensor performance. This can be done by using the device's built-in calibration routine or by using an external microcontroller to adjust the settings. The datasheet provides guidelines for calibration, and TI also provides a calibration tool to simplify the process.
The TSC2046IPW can support up to 46 touch sensors, depending on the configuration and the type of sensors used. However, the maximum number of sensors that can be connected may be limited by the system's noise tolerance and the desired level of sensitivity.
The TSC2046IPW has built-in EMI and RFI filtering, and it is designed to operate in noisy environments. However, it is still important to follow proper PCB layout and shielding practices to minimize the impact of external interference.
The power consumption of the TSC2046IPW depends on the operating mode and the frequency of operation. To minimize power consumption, it is recommended to use the device's low-power modes, reduce the operating frequency, and optimize the touch sensor design to minimize the number of sensors and the frequency of scans.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2046IPW Overview

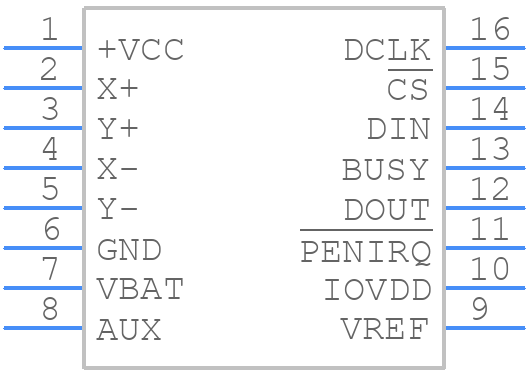

Use the download button to access the TSC2046IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
