Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the layout guidelines for the specific application. A good starting point is to use a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate.
The TSC2100IRHBR has an internal calibration circuitry that performs self-calibration during power-up. However, it's recommended to perform an external calibration using an external reference voltage and a calibration resistor. The calibration process is described in the datasheet.
The maximum sampling rate of the TSC2100IRHBR is 100 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the system's noise performance.
Yes, the TSC2100IRHBR can be used in a multi-channel application. However, it's essential to ensure that the channels are properly multiplexed and that the analog input signals are properly timed. Texas Instruments provides application notes and reference designs for multi-channel applications.
The power consumption of the TSC2100IRHBR depends on the operating mode, the clock frequency, and the supply voltage. Typically, the power consumption is around 1.5 mA at 3.3 V supply voltage and 100 kSPS. The exact power consumption can be calculated using the formulas provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2100IRHBR Overview

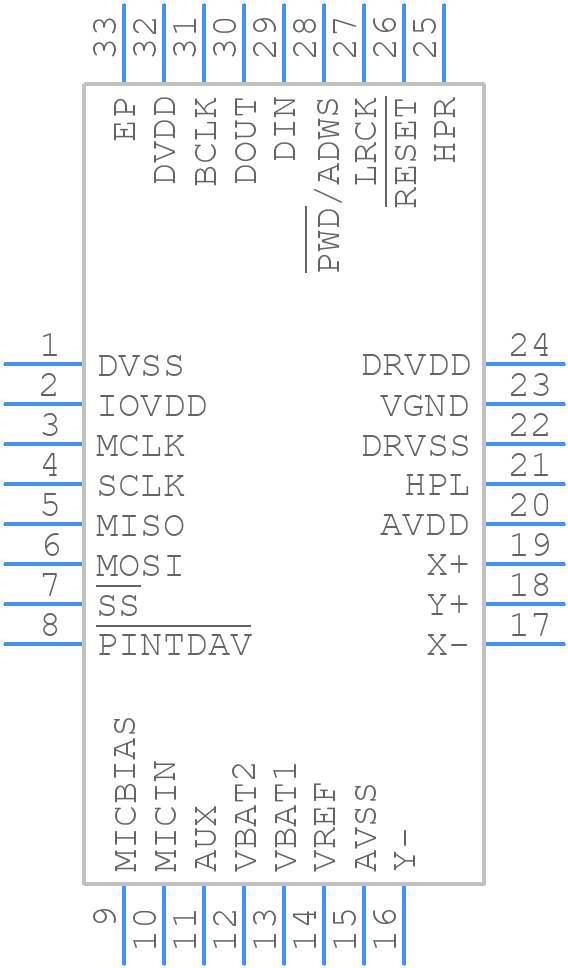

Use the download button to access the TSC2100IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC21,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
