Texas Instruments provides a recommended PCB layout in the TSC2200 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize noise and EMI issues.
The TSC2200IPWG4 is a highly configurable device, and the configuration process involves setting various registers and parameters. Texas Instruments provides a comprehensive user guide and software development kit (SDK) that includes example code and configuration files for different touch screen applications.
The TSC2200IPWG4 can operate at frequencies up to 10 MHz, but the maximum operating frequency depends on the specific application and the quality of the touch screen panel. It's recommended to consult the datasheet and application notes for more information on frequency selection and optimization.
Texas Instruments provides a troubleshooting guide and application notes that cover common issues and their solutions. Additionally, the TSC2200IPWG4 has built-in diagnostic features, such as a debug mode, that can help identify and resolve issues.
The TSC2200IPWG4 is designed to work with a wide range of capacitive touch screens, including those with various materials and coatings. However, it's recommended to consult the datasheet and application notes for specific guidance on compatibility and optimization for different touch screen materials and coatings.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TSC2200IPWG4 Overview

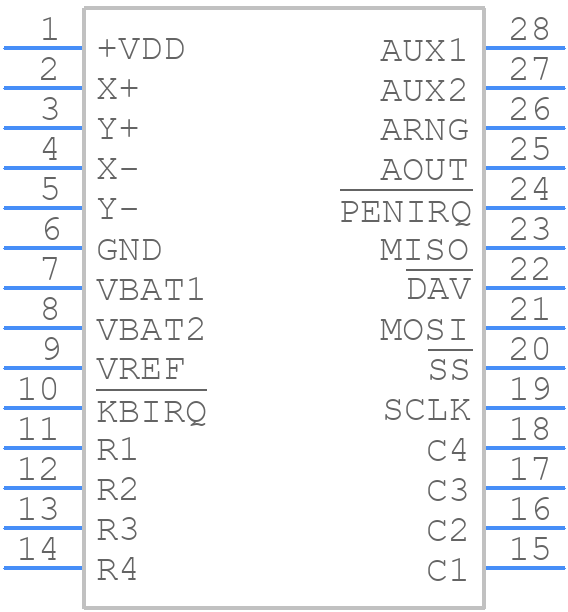

Use the download button to access the TSC2200IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC22,
or try a keyword search, such as Other Telecom ICs
