TSH511CF - STMicroelectronics

Description: Hi-fi stereo/mono infrared receiver and stereo sub-carrier demodulator

Download TSH511CF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

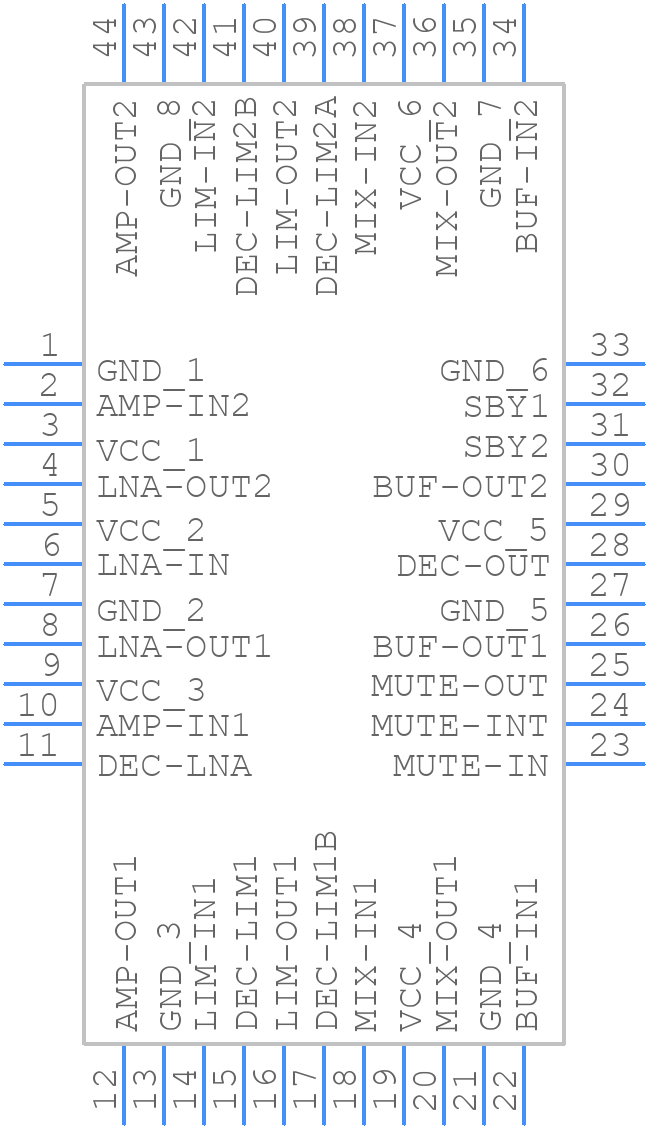

TSH511CF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSH511CF - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP44
click to zoom
3D Models
TSH511CF - STMicroelectronics - 3D model - Quad Flat Packages - TQFP44
click to zoom

TSH511CF Details

  • Manufacturer Part Number:

    TSH511CF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, TQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

TSH511CF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TSH511CF is 2.7V to 5.5V, although it can tolerate a voltage range of 2.5V to 6.0V for short periods.
  • To ensure the TSH511CF is in a low-power state, make sure the EN pin is set to a logic low (VIL) and the input signals are in a stable state. Additionally, consider using the shutdown mode (SD pin) to further reduce power consumption.
  • The TSH511CF can handle input frequencies up to 100 MHz, but it's recommended to limit the input frequency to 50 MHz or less for optimal performance and to prevent oscillations.
  • To optimize the TSH511CF for high-speed applications, use a low-ESR capacitor (e.g., 10nF) between the VCC and GND pins, and ensure the input signals have a fast rise and fall time (e.g., <1ns). Additionally, consider using a series resistor (e.g., 22Ω) between the input signal and the TSH511CF input pin.
  • The typical propagation delay of the TSH511CF is around 2.5ns, but this can vary depending on the input frequency, voltage, and temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSH511CF Overview

Use the download button to access the TSH511CF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSH51, or try a keyword search, such as Other Consumer ICs
