TSM1014AIDT - STMicroelectronics

Description: Low consumption voltage and current controller for battery chargers and adapters

Download TSM1014AIDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

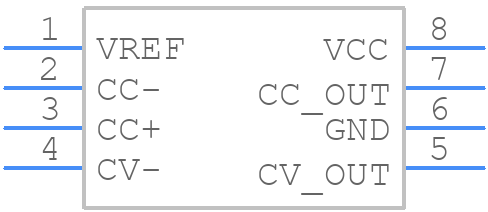

TSM1014AIDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM1014AIDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--8
click to zoom
3D Models
TSM1014AIDT - STMicroelectronics - 3D model - Small Outline Packages - SO--8
click to zoom

TSM1014AIDT Details

  • Manufacturer Part Number:

    TSM1014AIDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.35

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.18 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TSM1014AIDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSM1014AIDT involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The TSM1014AIDT requires a single 3.3V power supply. It's recommended to power the device with a clean and stable voltage source. The power sequencing requirement is to power up the device after the input voltage has reached 2.7V to ensure proper operation.
  • The recommended input termination for the TSM1014AIDT is 50 ohms, and the recommended output termination is 50 ohms to 75 ohms, depending on the specific application requirements.
  • The TSM1014AIDT has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane.
  • The TSM1014AIDT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. A minimum of 2kV human body model (HBM) and 200V machine model (MM) ESD protection is recommended.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM1014AIDT Overview

Use the download button to access the TSM1014AIDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10, or try a keyword search, such as Power Management Circuits
