TUSB1002ARGER - Texas Instruments

Description: INTERFACE IC MISC

Download TUSB1002ARGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

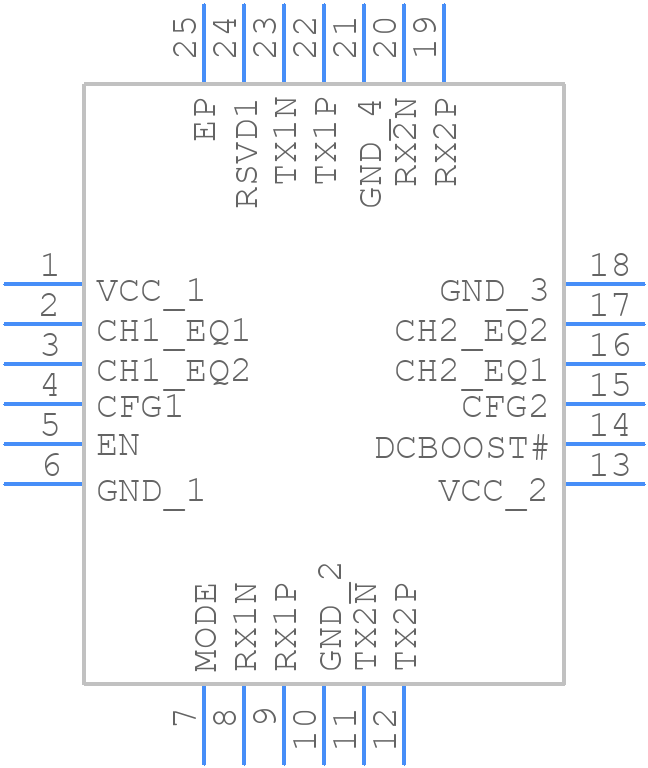

TUSB1002ARGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB1002ARGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-021
click to zoom
3D Models
TUSB1002ARGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-021
click to zoom

TUSB1002ARGER Details

  • Manufacturer Part Number:

    TUSB1002ARGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00008 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.15 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    0.15 ns

  • Width:

    4 mm

TUSB1002ARGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB1002ARGER evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TUSB1002ARGER can be configured for different charging modes using the I2C interface to program the device's registers. Texas Instruments provides a programming guide and software development kit (SDK) to help engineers configure the device for various charging modes, including USB-C PD and QC.
  • The TUSB1002ARGER has a maximum junction temperature of 125°C. To ensure reliable operation, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and optimizing PCB layout to minimize thermal resistance. Texas Instruments provides thermal management guidelines in the device's datasheet and application notes.
  • To ensure EMC and reduce EMI, engineers should follow proper PCB layout and design practices, such as using shielding, filtering, and grounding techniques. Texas Instruments provides EMC guidelines and application notes to help engineers design EMI-compliant systems using the TUSB1002ARGER.
  • The TUSB1002ARGER is designed to meet safety standards such as IEC 62368. Engineers should follow proper safety guidelines and design practices, such as using protective components, ensuring isolation and insulation, and following safe operating procedures. Texas Instruments provides safety guidelines and application notes to help engineers design safe and compliant systems using the TUSB1002ARGER.
