TUSB1002ARGET - Texas Instruments

Description: USB3.2 10 Gbps Dual-channel Linear Redriver

Download TUSB1002ARGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

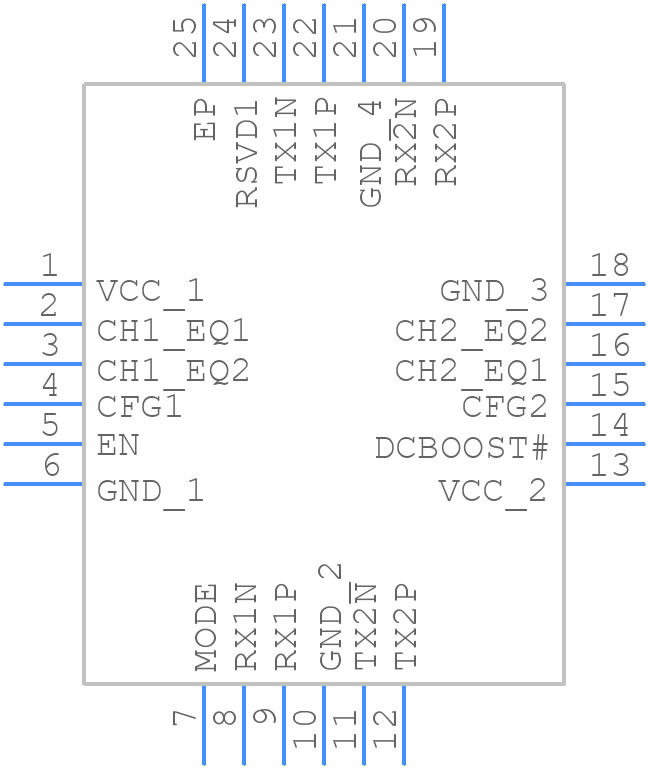

TUSB1002ARGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB1002ARGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024
click to zoom
3D Models
TUSB1002ARGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024
click to zoom

TUSB1002ARGET Details

  • Manufacturer Part Number:

    TUSB1002ARGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00008 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.15 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    0.15 ns

  • Width:

    4 mm

TUSB1002ARGET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB1002ARGET evaluation module (EVM) user's guide, which includes a detailed layout guide and Gerber files. It's essential to follow this layout to ensure proper signal integrity and minimize electromagnetic interference (EMI).
  • The TUSB1002ARGET can be configured for USB 3.2 Gen 1 or Gen 2 operation by setting the appropriate values for the CFG[2:0] pins. For Gen 1 operation, CFG[2:0] should be set to 000, and for Gen 2 operation, CFG[2:0] should be set to 001. Refer to the datasheet for more information on configuration options.
  • The TUSB1002ARGET supports cable lengths up to 3 meters for USB 3.2 Gen 1 operation and up to 1 meter for USB 3.2 Gen 2 operation. However, the actual cable length may vary depending on the specific application and cable quality.
  • The TUSB1002ARGET has a built-in power management feature that allows it to enter a low-power state when not in use. To implement power management, you can use the PMODE pin to control the power state of the device. Additionally, you can use the SUSPEND and WAKEUP pins to implement suspend and wake-up functionality.
  • The TUSB1002ARGET has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, especially in high-temperature environments or high-power applications.
