TUSB8020BIPHP - Texas Instruments

Description: Two-Port SuperSpeed 5.0Gbps USB 3.0 Hub

Download TUSB8020BIPHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

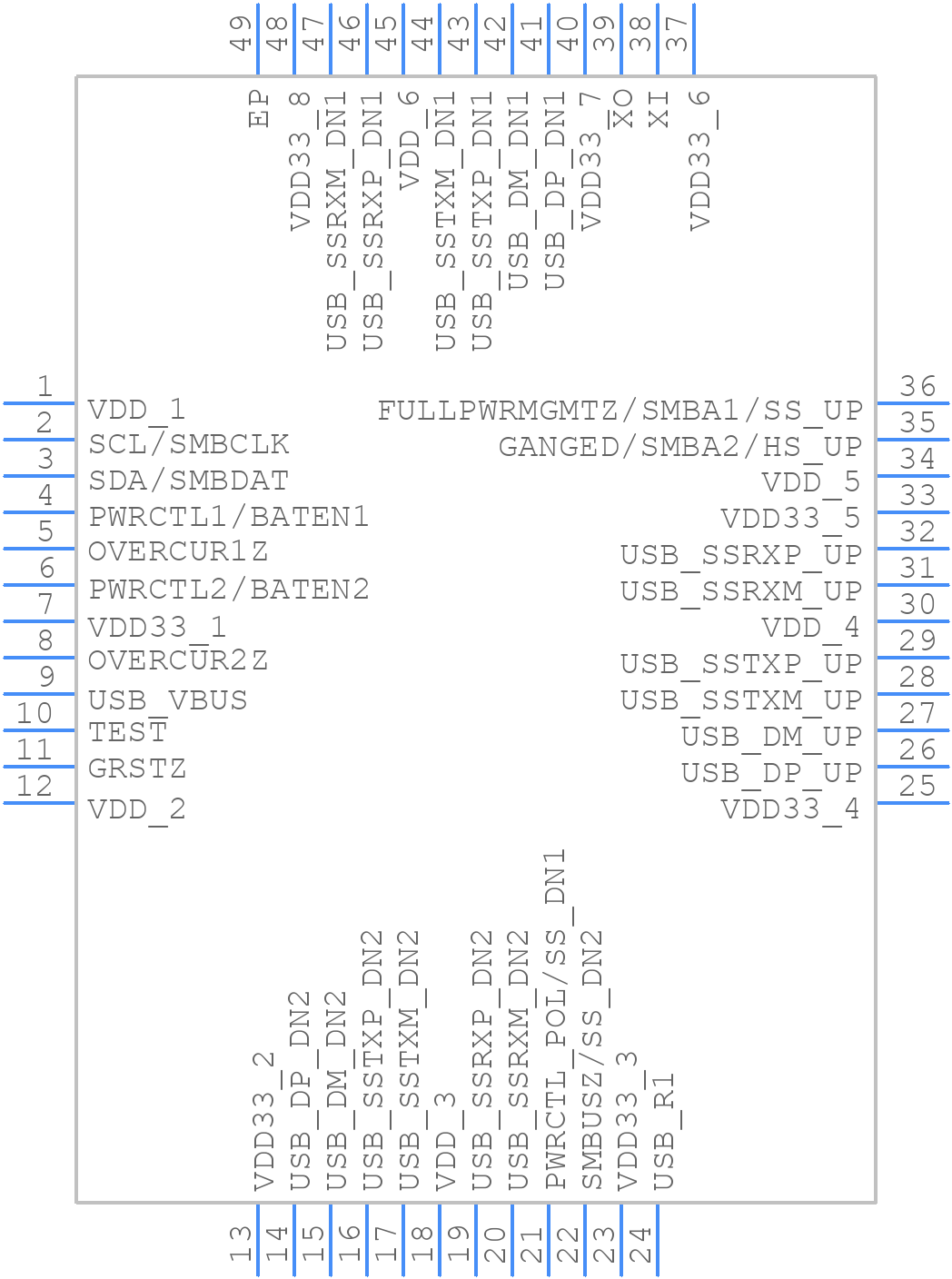

TUSB8020BIPHP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB8020BIPHP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP0048E*1
click to zoom
3D Models
TUSB8020BIPHP - Texas Instruments - 3D model - Quad Flat Packages - PHP0048E*1
click to zoom

TUSB8020BIPHP Details

  • Manufacturer Part Number:

    TUSB8020BIPHP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 SUPPLY

  • Bus Compatibility:

    I2C;SMBUS;USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB8020BIPHP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the USB connector, and the traces should be kept short and shielded to minimize EMI.
  • The device is rated for operation up to 85°C. Ensure good thermal design, including a heat sink if necessary, and follow the recommended PCB layout and thermal management guidelines.
  • The TUSB8020BIPHP is a USB 2.0 hub controller and can support up to 7 downstream ports. Ensure that the total current drawn from the upstream port does not exceed the maximum allowed current, and consider using a power management IC to manage power distribution.
  • Use a logic analyzer or USB protocol analyzer to capture and analyze the USB traffic. Check the device's power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is correct.
  • The device has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-protective packaging and handling equipment, and ensure that the device is properly grounded during assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB8020BIPHP Overview

Use the download button to access the TUSB8020BIPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB8, or try a keyword search, such as Bus Controllers
