TUSB8020BPHPR - Texas Instruments

Description: Two-Port SuperSpeed 5.0Gbps USB 3.0 Hub

Download TUSB8020BPHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

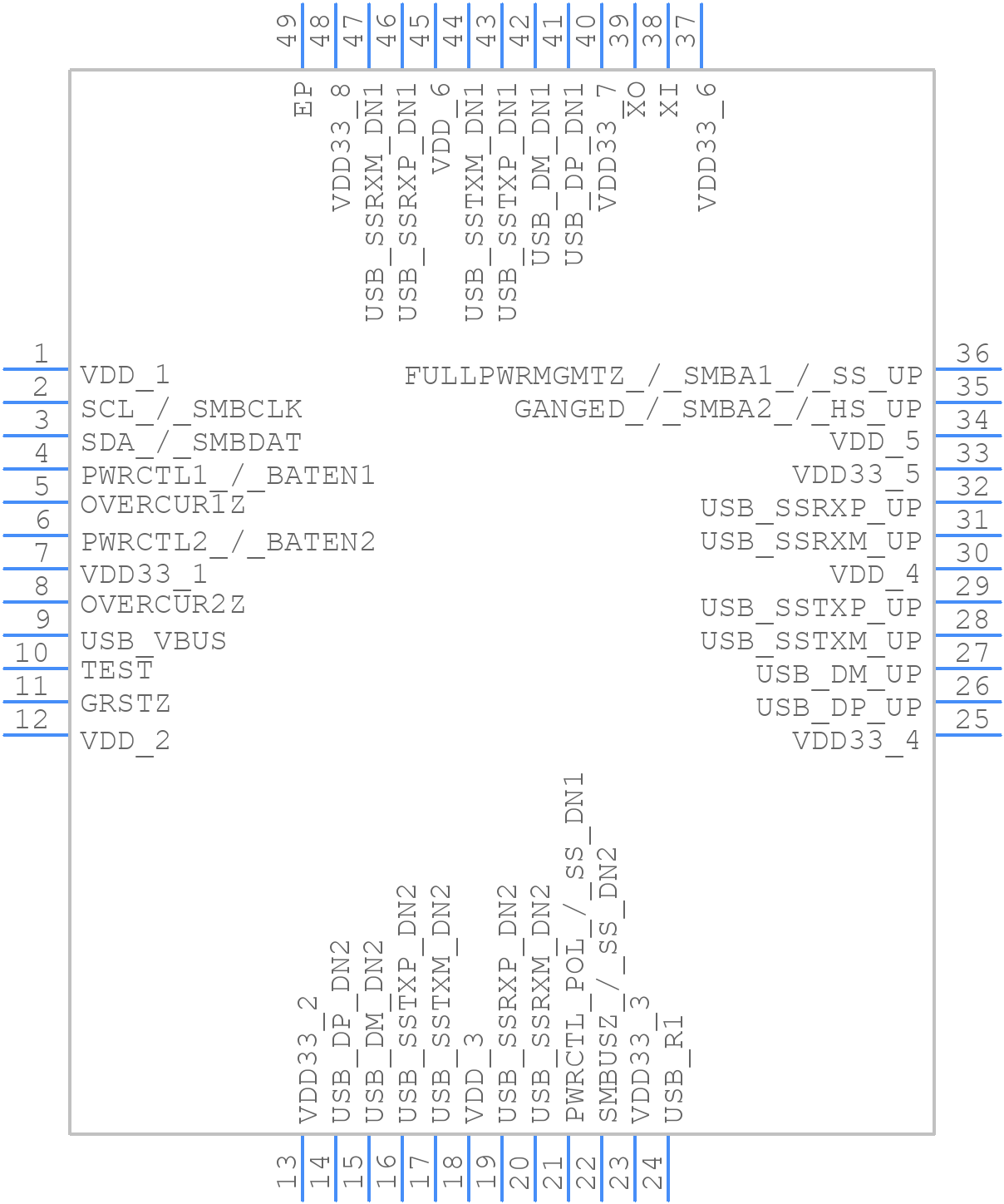

TUSB8020BPHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB8020BPHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - TUSB8020BPHPR
click to zoom
3D Models
TUSB8020BPHPR - Texas Instruments - 3D model - Quad Flat Packages - TUSB8020BPHPR
click to zoom

TUSB8020BPHPR Details

  • Manufacturer Part Number:

    TUSB8020BPHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3.3 SUPPLY

  • Bus Compatibility:

    I2C;SMBUS;USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB8020BPHPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the USB connector, and the differential pairs should be routed together with minimal length and impedance mismatch.
  • Use a shielded cable, keep the USB traces away from noise sources, and add a common-mode filter or ferrite bead to reduce EMI. Also, ensure that the device is properly decoupled and the power supply is clean.
  • The maximum cable length supported is 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters. However, the cable length may affect the signal quality and data transfer rate.
  • Yes, the TUSB8020BPHPR is a USB 3.0 compliant device and can be used in USB 3.0 applications. However, it is essential to ensure that the PCB layout and signal routing are optimized for high-speed signals.
  • Use a logic analyzer or oscilloscope to capture the signal waveforms and analyze the data transfer. Check the PCB layout, signal routing, and power supply quality. Also, ensure that the device is properly configured and the firmware is up-to-date.
