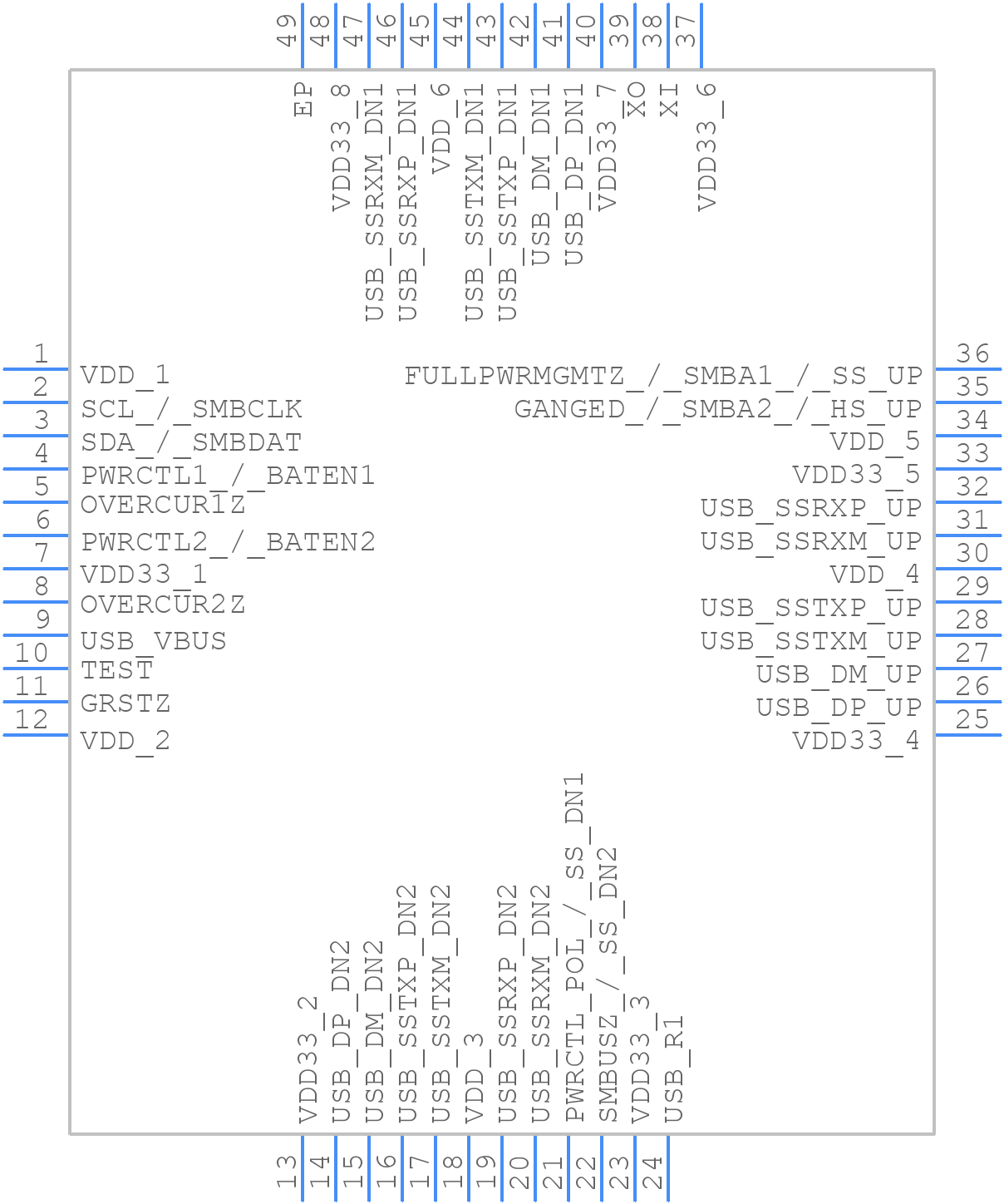

TUSB8020BIPHPR - Texas Instruments

TUSB8020BIPHPR Details

• Manufacturer Part Number:

  TUSB8020BIPHPR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES AT 3.3 SUPPLY

• Bus Compatibility:

  I2C;SMBUS;USB

• Clock Frequency-Max:

  24 MHz

• Data Transfer Rate-Max:

  0.0125 MBps

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  0.99 V

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
