TVP5150AM1PBS - Texas Instruments

Description: TVP5150AM1PBS, Video Decoder NTSC, PAL, SECAM 1-channel 9bit- 3.3V 32-Pin TQFP

Download TVP5150AM1PBS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

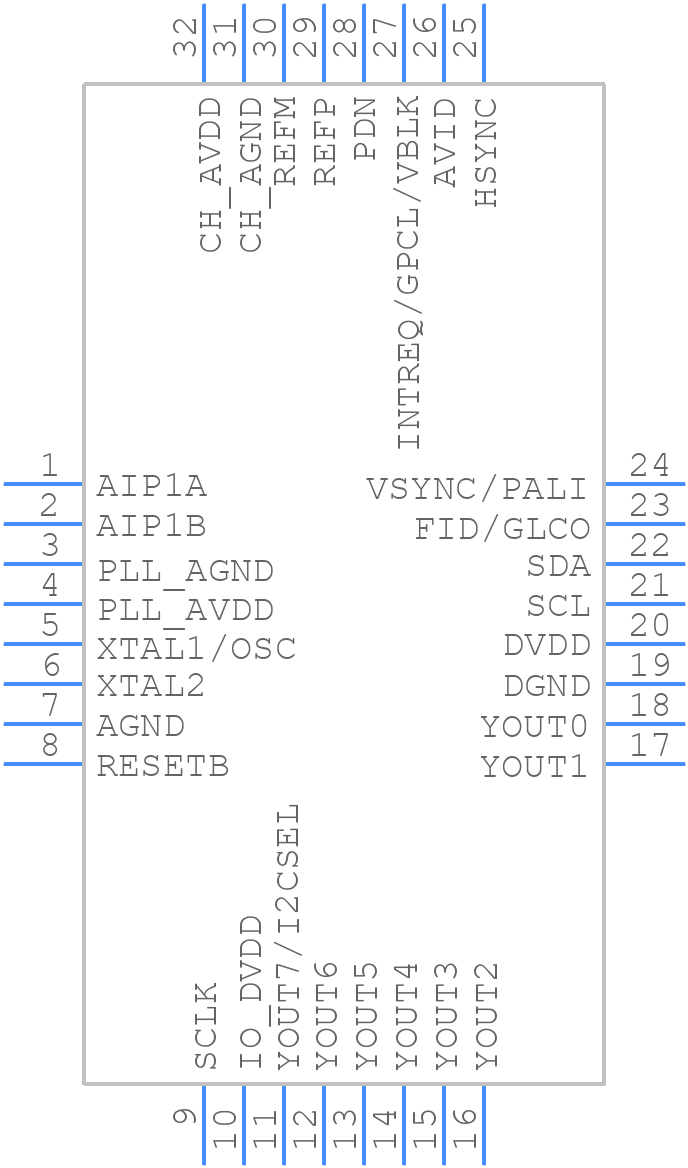

TVP5150AM1PBS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150AM1PBS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom
3D Models
TVP5150AM1PBS - Texas Instruments - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

TVP5150AM1PBS Details

  • Manufacturer Part Number:

    TVP5150AM1PBS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32.9 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL;NTSC;SECAM

  • Width:

    5 mm

TVP5150AM1PBS Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog power pins (AVDD and DVDD) first, followed by the digital power pins (DVDD and VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5150 can be configured for different video input formats using the I2C interface. The device has a set of registers that can be programmed to select the input format, such as NTSC, PAL, or SECAM. Refer to the datasheet for the specific register settings for each format.
  • The TVP5150 supports clock frequencies up to 27 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The TVP5150 outputs a digital video signal in ITU-R BT.656 format. This signal can be connected to a digital video encoder or a video processor for further processing. The output signal is also compatible with many video decoders and processors.
  • The power consumption of the TVP5150 depends on the specific application and the clock frequency used. However, the typical power consumption is around 250 mW when operating at a clock frequency of 27 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TVP5150AM1PBS Overview

Use the download button to access the TVP5150AM1PBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51, or try a keyword search, such as Color Signal Converters

About Texas Instruments
